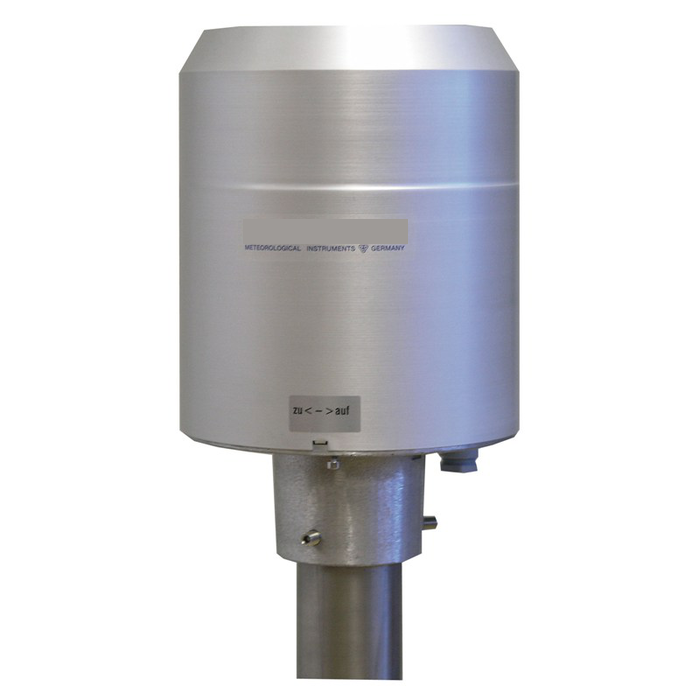

雨量传感器 Joss-Tognini (E15189 analogue) 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
Robustness meets design ...
The resistant and beautifully designed sensor has a linearised pulse output for high accuracy and easy connection to external data loggers! Its selectable analogue output signal substantially simplifies the connection to PLC. Winter-fit models and in general a long durability are guaranteed by weatherproof materials.
- selectable measuring ranges as well as absolute or gliding sums for the analogue output signals
- single device or part of an automatic weather station
- connectable to data logger TROPOS
- very reliable, weighing measuring system
- high-quality material
- easy installation
| Precipitation sensor according to Joss-Tognini (E15189 analogue) | ||
|---|---|---|
| Measuring range | 2 cm³: (2 g) volume of tipping bucket - 0.1 mm • 4 cm³: (4 g) volume of tipping bucket - 0.2 mm | |
| Accuracy | ± 2 % | |
| Resolution | 2cm³: 0...8 mm/min • 4cm³: 0...16 mm/min | |
| Analogue output | 0...20 mA = basic setting • 4...20 mA • 0...5/10 V - selectable current consump. ≤ 40 mA • supply voltage 18...30 VDC • max. load 600 Ω | |
| Pulse output | for linearised, bounce-free output signal • at deactivated analogue output: current consump. max. 100 µA • typical 50 µA • supply voltage 5...30 VDC • switch load max. 30 VDC/ max. 0.5 A - at pure ohm load | |
| Collecting surface area | 200 cm²/ WMO standard | |
| Heating data | *dual-circuit heating • controlled temperature of 4 ± 2 °C within a range of -20...+4 °C • heating power 150 W • supply voltage 24 VDC | |
| Dimensions | H 292 mm • Ø 190 mm • for mounting pipe Ø 60 mm | |
| Housing | aluminium • anodised | |
| Weight | approx. 3 kg | |
| Standards | WMO-No. 8 • VDI 3786 page 7 • EN 50081/82 • VDE 0100 | |
| Variaties | (E15189 an.)Precipitation sensor 2cm³-bucket volume -unheated • (15189 W4an.)Precipitation sensor 4cm³-bucket volume -unheated • (E15189 H an.)Precipitation sensor 2cm³-bucket volume -heated* • (E15189 HW4 an.)Precipitation sensor 4cm³-bucket volume -heated* | |
| Accessories | (E1496 S62) Power supply unit for heated sensors | |
