The rain classic ...
and evergreen. Simple and rigorously useful technologies guarantee high quality. Construction according to the requirements of the German meteorological service (DIN 58666). The polystyrene measuring cylinder is equipped with a scale with very good reading accuracy.
- measurement according to DIN-norm
- easy to mount
- simple usage and handling
- weather-proof materials
- very robust and compact
- good value
- b-variety with twice as much equipment for snow measurement

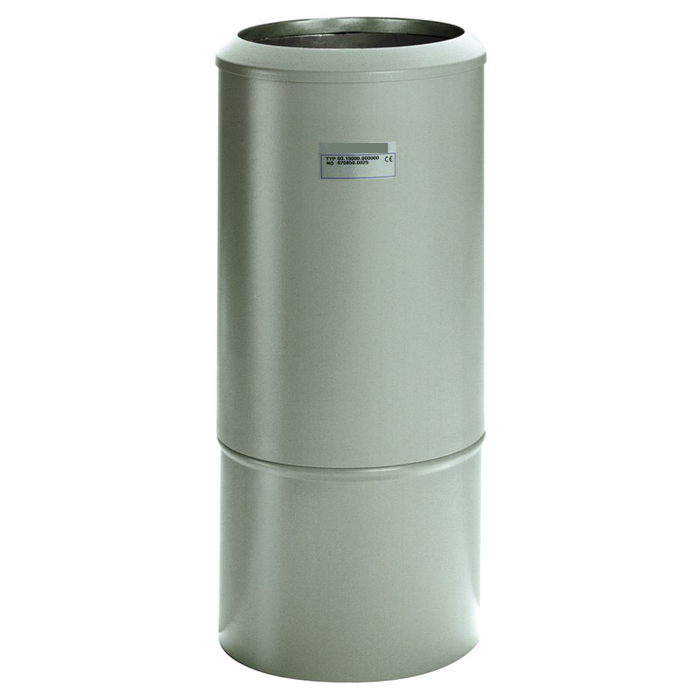

| Precipitation recorder E1500 | ||
|---|---|---|
| Measuring range | 1.2 l collecting can: precipitation quantity 60 mm • 200 cm³ measuring cylinder: 10 mm | |
| Error limit | 0.1 mm precipitation | |
| Scale | 0.1 mm/ 0...10 mm | |
| Collecting surface area | 200 cm² / WMO standard | |
| Dimensions | H 450 mm • Ø 190 mm | |
| Housing | zinc plate • RAL 7038 (agate-grey) • acc. to DWD/DIN 58666 | |
| Weight | approx 2.3 kg | |
| Variaties | E00.15002.000 000 (1500 b) Rain and snow gauge according to Hellmann: with 2 collecting cans • 2 collecting funnels • 2 bottom parts • 2 snow crosses • 200 cm³ measuring cylinder: 10 mm • weight approx. 5.2 kg | |
| Accessories | (E1500 U5) Support: necessary for assembly of (1500) - galvanised flat steel - H 375 mm - weight approx. 0.7 kg • (E1500 U30) Snow cross: weight approx. 0.5 kg • (E1500-31) Spare measuring cylinder: polystyrene acc. to DIN 58667 - weight 0.05 kg | |
