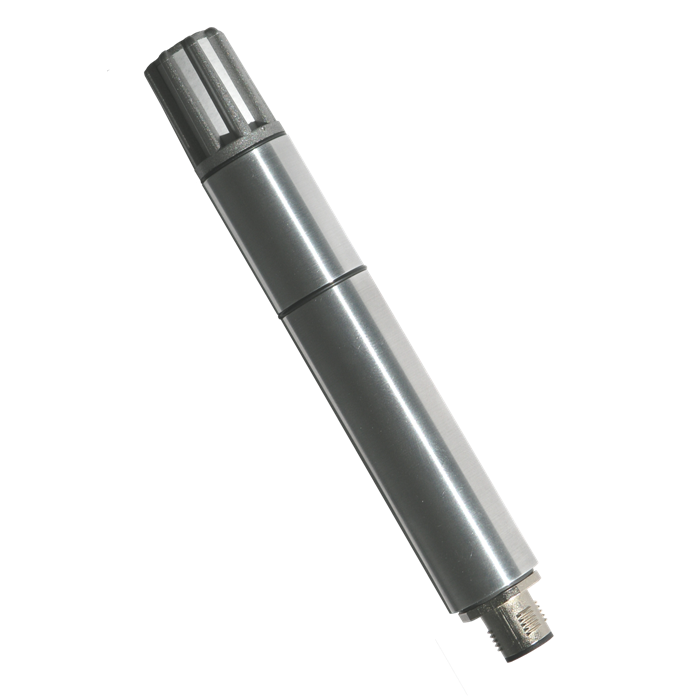

The sensor (E8095-N) ...
is a combined measuring instrument for measuring relative humidity, air temperature and air pressure. The sensor is characterised by a power-saving electronic. The mebrane filter reliably protects the capacitive measuring element from air pollutants.
- combined measuring instrument for high-quality use
- capacitive humidity measuring element
- low maintenance
- special resistance to air pollutants
- signal output humidity: RS 422/ Talker • NMEA
- for use in all climatic zones
| Combined Sensor THP (E8095) | ||
|---|---|---|
| Measuring range | Temperature: -40...+70 °C • Relative humidity: 0...100 % r.h • Barometric pressure: 500...1100 hPa | |
| Resolution | Temperature: 0.1 °C • Relative humidity: 0.1 % r.h. • Barometric pressure: 0.1 hPa | |
| Supply voltage | 4.8...33 V DC | |
| Dimensions | H 140 mm x Ø 20 mm | |
| Housing | Aluminium especially-coated • IP 65 (housing) • IP 65 (filter) | |
| Weight | approx. 80 g | |
| Standards | NMEA 0183 • WIMHU • WIMMB • WIMTA | |
