"First class" ...

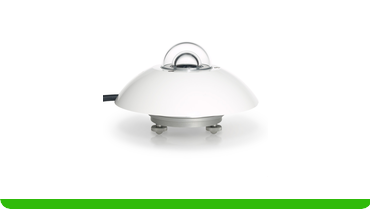

not only according to the WMO Classification! The special, high-quality thermocouples ensure the high linearity and accuracy of this pyranometer. The double glass dome is an additional feature that signifies the high device quality. The protection shield provides optimum measuring conditions as the result of a homogenous housing temperature. The adjustment is greatly simplified by the integrated levelling device.
- precise, universal measuring device
- design with double glass dome
- high-quality materials for long-term stability, resistance to environmental influences and UV-resistance
- analogue signal output
| Pyranometer "First Class" (E16131.3) | ||
|---|---|---|
| Measuring range | 0...3000 W/m² • global radiation within a range of 285...3000 nm | |
| Accuracy | <± 5 % (305...2800 nm) | |
| Sensitivity | 7...25 µV/ W/m² | |
| Directional error | < 20 W/m² | |
| Inclination error | <± 2 % | |
| Impedance | 40...60 Ω | |
| Dimensions | max. Ø 144 mm • approx. H 90 mm • cable length 10 m | |
| Weight | approx. 0.9 kg | |
| Standards | ISO 9060 ''First class" • certificate for sensitivity | |
| Accessories | E00.08763.055 002 (E8763 S) Two-channel transducer for pyranometer (optional) | |
