Precision measuring instrument ...
for measuring relative humidity and air temperature. The compact sensor is characterised by power-saving electronics and a high measuring accuracy. A membrane filter reliably protects the high-quality capacitive measuring element from air pollutants.
- measuring element temperature: Pt100 1/3 DIN
- capacitive humidity measuring element
- high measuring accuracy
- special resistance to air pollutants
- high long-term stability

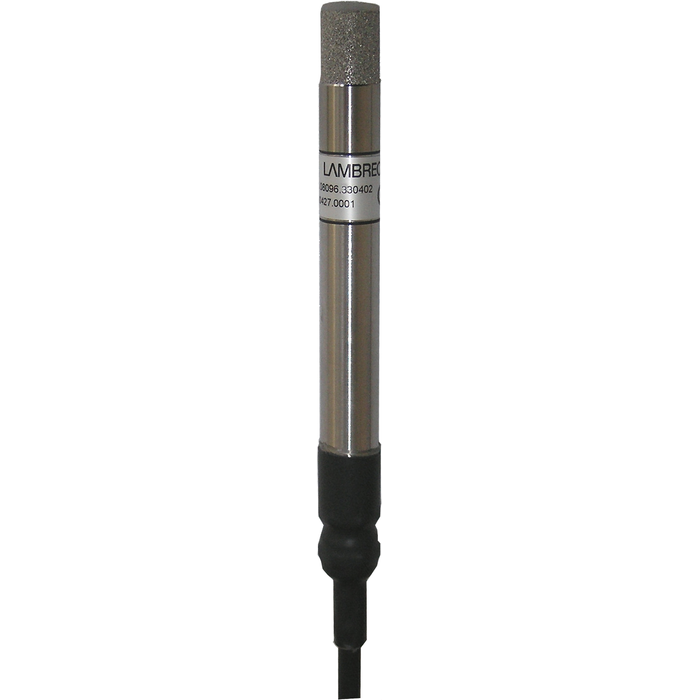

| Humidity-temperature sensor E8096 | ||
|---|---|---|
| Measuring range | 0...100 % r. h. • -40...+70 °C | |
| Accuracy | humidity: ± 2 % r. h. at: 5...95 % r. h. • +10...+40 °C (at > 0.5 m/s) • plus: < 0.1 % r. h./ °C at: < +10 °C • > +40 °C • temperature: ± 0.1 °C, 1/3 DIN IEC 751 Class B | |
| Output |
Humidity: 0...1 V DC = 0...100 % r.h. • Min. load resistance ≥ 2 kOhm Temperature: Pt100 (4-wire circuit) |
|
| Supply voltage | 6...30 V DC | |
| Housing | stainless steel • IP 65 • protection class of filter IP 40 | |
| Weight | approx. 0.3 kg | |
| Standards | EMV: DIN EN 60945 - Kap. 9, 10 | |
| Variaties | E00.08096.330402 - Schock- und Shock and vibration-tested precision instrument according to EBV0230/ 0430 and EBV0440/ 0240 | |
| Accessories | E00.08141.400 000 (8141.4) Sensor shelter + 15 mm adapter for (8096), Id-No. E33.08141.006 000 | |
