The jack of all trades ...

is this combined sensor for reliable wind data, optimised by experience. The double blade wind vane's and the cup rotor's axis run individually on precision ball bearings. Smooth running, low-wear and longevity are the outcome. Reliable and trustworthy measuring results are guaranteed.

compact and robust
corrosion and seawater resistant
low starting values
high accuracy and linearity across the whole measuring range
easy installation
versions without heating available

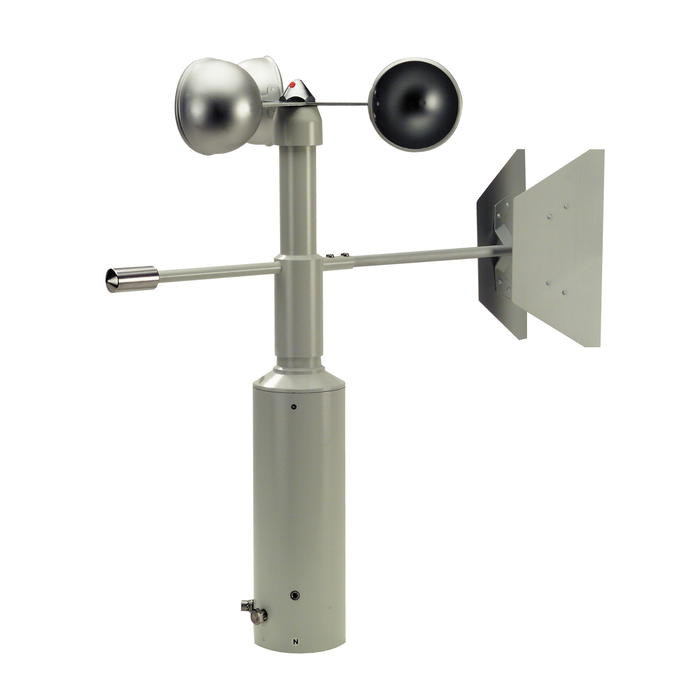

	Combined wind sensor E14512
Measuring range	wind direction: 0...360° • wind speed: 0...35 m/s
Accuracy	wind direction: ± 1 % • wind speed: ± 2 % FS
Resolution	wind direction: 0.1° • wind speed: 0.1 m/s
Starting value	wind direction: 1 m/s • wind speed: 0.2 m/s (I-type) • 1 m/s (G4-type)
Output	4 mA at 0...35 m/s • Ra = 3541 Ω
Supply voltage	12 VDC/ max. 0.7 W for one indicator • up to 8 indicator units possible • heating 24 VDC/ 1.25 A/ 30 VA • versions without heating on request
Dimensions	cup rotor Ø 278 mm • H 500 mm • for mounting pipe Ø 50 mm
Housing	aluminium • RAL 9002 (grey-white) • partially grey coated
Weight	approx. 2.4 kg
Included in delivery	1 plug • 12-pole • when a cable is ordered, the plug is mounted to it
Variaties	(E14512 HG4F1000) Precision ring potentiometer F1000; DC-generator G4 • (E14512 HG4H) Precision ring potentiometer; DC-generator G4 • (E14512 HIF1000) Precision ring potentiometer F1000; inductive proximity switch DIN 19234
Accessories	(E14511 U65b) Cable for F1000-varieties - 8-pole - 4m - ready-for-use • (E14511 U65) Cable for N-varieties - 8-pole - 4m - ready-for-use • Indicators e.g. (E1476 Q144N) or (E1477 Q144) • Power supply units: see chapter "Periphery"

Accessories

Wind indicator units for naval application

the pointer moves on the ergonomical, well readable scale. With reference to the ship's momentary values for wind direction, these are clearly and umambigously interpretable (illustration 1). Green and red segments for port and starboard support this function. The indicator (illustration 3) is a complete solution. At indicator stations for wind parameters, two indicators (e.g. illustration 1+2) can be combined into one panel.

very reliable indicators with long-term stability
white, dimmable scale illumination
clearly interpretable and very well readable analogous scales
standard housing for installation
robust meters and scales
high linearity

Analogue wind indicator units

the current wind direction and wind speed are clearly displayed. The data is unambiguously interpretable on the ergonomically well-made scale faces. Robust moving-coil measuring system and metal housings guarantee long-term stability and linearity. Standard housings (EQ 144 format) permit easy mounting into control panels.

inner scale of indicator (E1476 Q 144N) with 8 main and 8 intermediate wind directions
good readability of analogous scales
no individual power supply required
