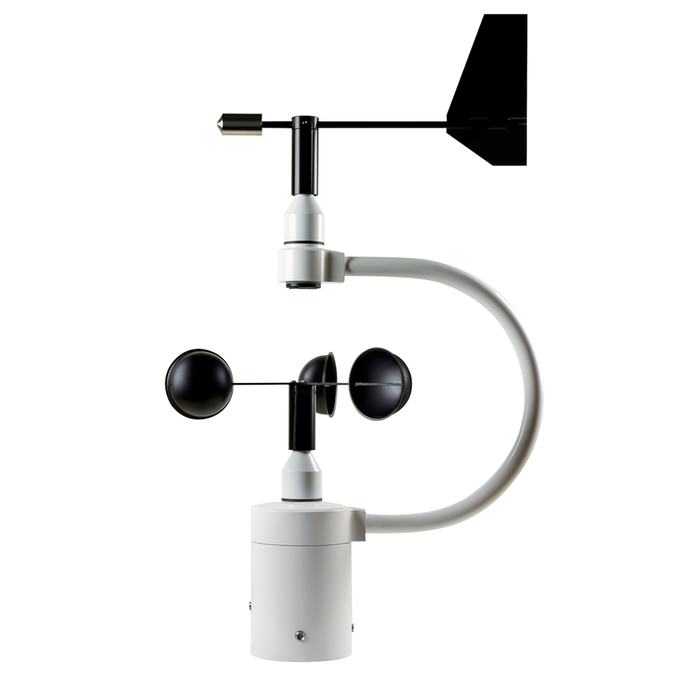

The classical combined sensor ...

for off-shore applications. The robust design made from seawaterresistent materials and additional special coating guarantees high reliability and error-free long time use. The measured wind values will be given as NMEA-protocol serially every minute. Both under extreme weather conditions and on the high seas and applications close to the sea this sensor is the first choice.

  • approved combined sensor design for universal use
  • special coating for error-free long time use
  • best material quality and precision for low start-up values and wide measuring range
  • wear-free data collection for high accuracy and resolution of the measuring values
  • serial interface with NMEA 0183 protocol
suitable for naval applications vane made of aluminium cup rotor made of aluminium Sensor housing made of seawater resistent alumnium Housing protection IP 65 in upright position Sensor heads heated with 9 W each

  Wind sensor EARCO-NAV
  Wind direction Wind speed
Measuring range 0...360° 0.3 ... 75 m/s
Accuracy ± 1° ± 2 % FS at 0.3 ... 50 m/s
Resolution < 0.1 m/s
Output serial RS 422, NMEA 0183 - Talker
Supply voltage Sensor: (10...28 V DC), 24 V DC, 50 mA (at V DC) • Heating: (20 ...28 V DC), 24 V DC, 800 mA
Housing made of anodized seawater resistent aluminium, stainless steel • white coated
