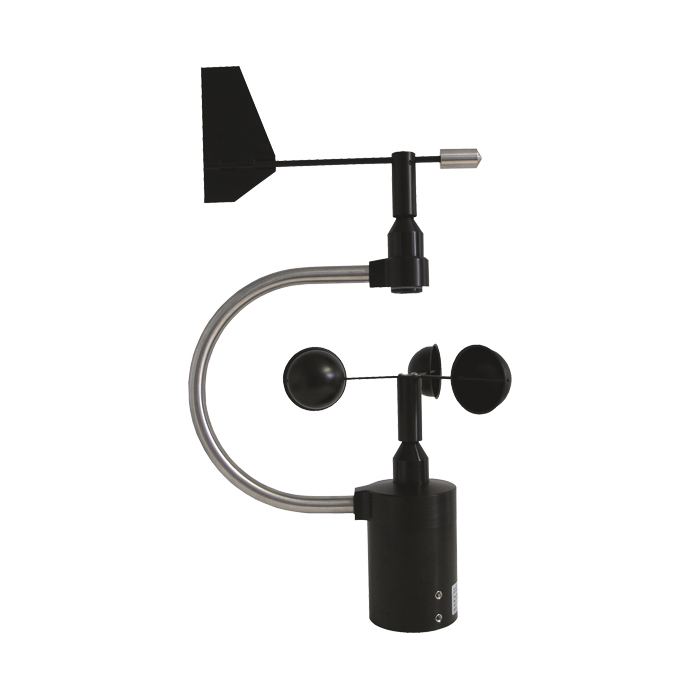

The robust combined sensor ...
The sensors of the EARCO family are very robust, compact and extremely reliable. Due to their shock and vibration proof construction the sensors EARCO-SERIAL are particulary qualified for use under severe environmental conditions. The housing and the measuring elements are made of seawater resistant aluminium alloys. The housing, the cup rotor and the wind vane are anodised.
- qualitatively ambitious and cost-effective solution
- reliable wind measurement, including under extreme weather conditions
- seawater resistant materials and surface finishes for long-life application, including under harsh conditions
- quick and easy pipe mounting, connection with just one cable
| Wind sensor EARCO-SERIAL | ||
|---|---|---|
| Wind direction | Wind speed | |
| Measuring range | 0...360° | 0.3 ... 75 m/s |
| Accuracy | ± 1° | ± 2 % FS at 0.3 ... 50 m/s |
| Resolution | 1° | < 0.1 m/s |
| Output | serial RS 422, NMEA 0183 - Talker | |
| Supply voltage | Sensor: (10...28 V DC), 24 V DC, 50 mA (at V DC) • Heating: (20 ...28 V DC), 24 V DC, 800 mA | |
| Housing | made of anodized seawater resistent aluminium, stainless steel | |
