Open sea and storm resistant!
Seawater-resistant and special reinforced measuring elements assure high reliability over a wide working life. The special coating ensures the sensors to be used on vessels, off-shore wind energy plants and further applications close to the sea. The housing and the measuring elements are made from seawaterresistant aluminium and the design was aerodynamically optimised. The heating integrated in the head of the sensor as well as the reinforced, double bearing axis makes this sensors to the most robust version of it's class.
- re-inforced measuring elements, axis and bearing for high vibration resistance
- special coating for error-free long time use
- low start-up values and wide measuring range up to 60 m/s
- wear-free data collection for high accuracy and resolution of the measuring values

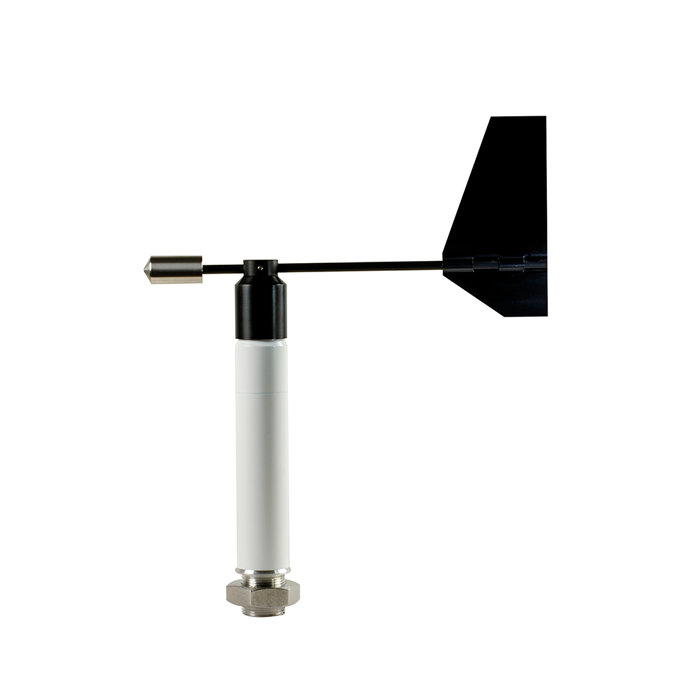

| Wind sensors EPRO-NAV | ||
|---|---|---|
| Measuring range | wind direction: 0...360° • wind speed: 0.6...60 m/s | |
| Accuracy | wind direction: ± 2° • wind speed: ± 0.3 m/s ≤ 10 m/s; ± 0.6 m/s ... 60 m/s | |
| Resolution | wind direction: < 1° • wind speed: < 0.1 m/s | |
| Starting value | wind direction: < 0.5 m/s • wind speed: 0.6 m/s | |
| Output | wind direction: 4...20 mA = 0...360° • wind speed: 4...20 mA = 0...60 m/s | |
| Update rate | 4 Hz | |
| Supply voltage | 24 VDC (20...28 VDC) • 18 W heating • max. 800 mA • The heating within the sensor head prevents blocking of the moving parts under most climatological conditions | |
| Measuring principle | Hall Sensor Array, non-contact | |
| Housing | seawater-resistant aluminium • anodised and white coated • IP 65 in upright position • M12 cable-plug connection • stainless steel nut and lock washer | |
| Weight | wind direction: 0.4 kg • wind speed: 0.35 kg | |
| Included in delivery | 1 sensor • 15 m cable • with 4 pin M12 plug connector | |
