Ultra robust and storm proof ...
due to reinforced measuring elements! With improved protection against electrostatic discharge due to their special surface, these high-tech sensors are perfectly suitable for use in all regions that are at risk from lightning and storms. The design is aerodynamically optimised and both the housing and the measuring elements are made of seawater resistant aluminium. Further advantages include the integrated, controlled heating and the optionally available cable with high UV-resistance.
- reinforced measuring elements and stronger axis
- high vibration resistance
- improved protection against electrostatic discharge
- high measuring range of 60 m/s
- low starting values
- very high resolution of measuring values

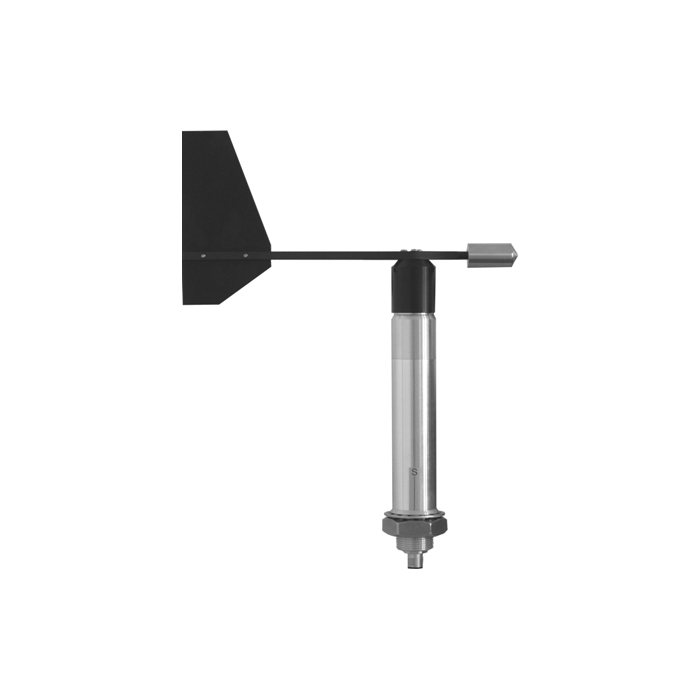

| Wind sensors EPRO-WEA / RF | ||
|---|---|---|
| Measuring range | wind direction: 0...360° • wind speed: 0.6...60 m/s | |
| Accuracy | wind direction: ± 2° • wind speed: ± 0.3 m/s ≤ 10 m/s • ± 0.6 m/s...60 m/s | |
| Resolution | wind direction: < 1° • wind speed: < 0.1 m/s | |
| Starting value | wind direction: < 0.5 m/s • wind speed: < 0.6 m/s | |
| Output | 4 Hz update rate • wind direction: 4...20 mA = 0...360° • wind speed: 4...20 mA = 0...60 m/s • at the current output (4...20 mA) a load of max. 600 Ohm must not be exceeded | |
| Supply voltage | 24 VDC (20...28 VDC) • 18 W heating • max. 800 mA • the heating within the sensor head prevents blocking of the moving parts under most climatological conditions | |
| Measuring principle | Hall Sensor Array, non-contact | |
| Housing | seawater resistant aluminium • IP 65 in upright position • M12 cable-plug connection • stainless steel nut and lock washer | |
| Weight | wind direction: 0.4 kg • wind speed: 0.35 kg | |
| Included in delivery | 1 sensor • 15 m cable • with 4 pin M12 plug connector | |
