The universal-genius ...
with improved protection against electrostatic discharge! Thus these high-tech sensors are predestined for operation in lightning-prone regions. The design is aerodynamically optimised and both the housing and the measuring elements are made of seawater resistant aluminium. Further advantages include the integrated, controlled heating and the optionally available cable with high UV-resistance. EPRO-WEA wind sensors are robust and best suited for year-round applications in most climatic zones.
- improved protection against electrostatic discharge
- especially robust due to reinforced axis
- high measuring range of 60 m/s
- low starting values of < 0.5 m/s
- very high resolution of measuring values

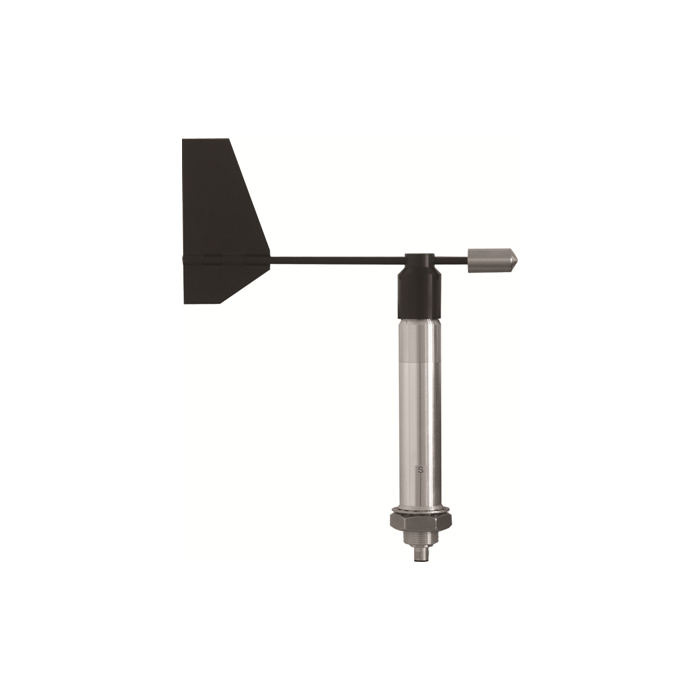

| Wind-sensor EPRO-WEA | ||
|---|---|---|
| Measuring range | wind direction: 0...360° • wind speed: 0.5...60 m/s | |
| Accuracy | wind direction: ± 2° • wind speed: ± 0.3 m/s ≤ 10 m/s • ± 0.5 m/s...60 m/s | |
| Resolution | wind direction <1° • wind speed: < 0.1 m/s | |
| Starting value | < 0.5 m/s | |
| Output | 4 Hz update rate • wind direction: 4...20 mA = 0...360° • wind speed: 4...20 mA = 0...60 m/s • at the current output (4...20 mA) a load of max. 600 Ohm must not be exceeded | |
| Supply voltage | 24 VDC (20...28 VDC) • 18 W heating • max. 800 mA • the heating within the sensor head prevents blocking of the moving parts under most climatological conditions | |
| Measuring principle | Hall Sensor Array, non-contact | |
| Housing | seawater resistant aluminium • IP 65 in upright position • M12 cable-plug connection • stainless steel nut and lock washer | |
| Weight | wind direction: 0.4 kg • wind speed: 0.35 kg | |
| Included in delivery | 1 sensor • 15 m cable • with 4 pin M12 plug connector | |
