Programmable Voltmeters / Ammeters

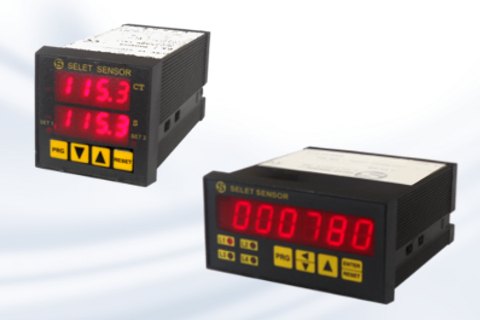

VCM1 - 5 digits monodirectional Voltmeters / Ammeters - Dimensions: 48 x 48 mm
- 5 digits monodirectional μC Voltmeter / Ammeter
- Dimensions: 48 x 48 x 90 mm
- Display: reading and setup steps
- Power supply: 24 Vac - 110 Vac - 230 Vac - 24 Vdc
- (VCM10) Incators only, (VCM13) two preset counter models
- Analogic d.c. / a.c. inputs
- Inputs scales: 0 ÷ 20 mA, 4 ÷ 20 mA,0 ÷ 2 V, 0 ÷ 5 V, 0 ÷ 10 V Optional: 5A, 0 ÷ 10 V, load cell, Ohmmeter
- Point programming
- Fixed zero programming
- Reset programming
- Set mode and alarm cycles programming
- 5 digits monodirectional μC Voltmeter / Ammeter
- Dimensions: 96 x 48 x 100 mm
- Display: reading and setup steps
- Power supply: 24 Vac - 110 Vac - 230 Vac - 24 Vdc
- (VCM60) Incators only, (VCM63) two preset or (VCM65) four preset counter models
- (R) Serial communication or (LE) analog output models
- Analogic d.c. / a.c. inputs
- Inputs scales: 0 ÷ 20 mA, 4 ÷ 20 mA,0 ÷ 2 V, 0 ÷ 5 V, 0 ÷ 10 V Optional: 5A, 0 ÷ 10 V, load cell, Ohmmeter
- Point programming
- Fixed zero programming
- Reset programming
- Set mode and alarm cycles programming
