Simple Voltmeters / Ammeters

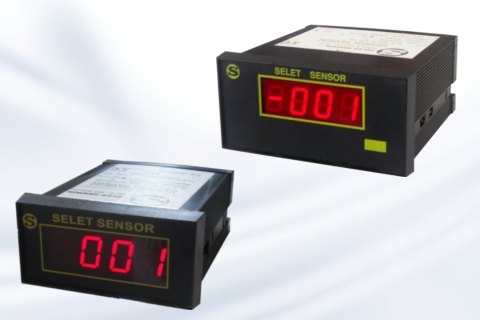

DVM3 - 4 digits monodirectional Voltmeters / Ammeters - Dimensions: 72 x 36 mm
- 4 digits monodirectional Voltmeter / Ammeter
- Dimensions: 72 x 36 x 106 mm
- Display: reading and setup steps
- Models with d.c. input: DVM304
- Models with a.c. input: DVM314
- Inputs scales d.c. / a.c.: M0= 10 ÷ 1000 mV, M1= 1 ÷ 100 V, M2= 10 ÷ 1000 V, M3= 4 ÷ 20 mA / 200 mA / 5 A
- Decimal point selection by jumper on display card (free access removing front panel)
- Digit zero trimming by rear trim-pot
- Full scale trimming by rear trim-pot
- 4 digits monodirectional Voltmeter / Ammeter
- Dimensions: 96 x 48 x 106 mm
- Display: reading and setup steps
- Models with d.c. input: DVM604, DVM605
- Models with a.c. input: DVM614, DVM615
- Inputs scales d.c. / a.c.: M0= 10 ÷ 1000 mV, M1= 1 ÷ 100 V, M2= 10 ÷ 1000 V, M3= 4 ÷ 20 mA / 200 mA / 5 A
- Decimal point selection by jumper on display card (free access removing front panel)
- Digit zero trimming by rear trim-pot
- Full scale trimming by rear trim-pot
e4ccc-dvm3_6.pdf 下载
