INDUSTRIAL SYSTEMS
As part of the measures of prevention and protection, the acoustic signal is a key element of the system because from the start to the phases of evacuation plan and procedures for intervention, it allows the implementation of the measures for the safety of workers and people present.
In order to choose a correct philosophy and elements configuration needed to create a suitable plant of audible alarm and evacuation, you should consider few things:
• to know the real environmental conditions of use considering factors such as background noise, the area to be covered, the presence of obstacles (walls, shelves, sound absorbing walls);
• to consider the variables of the acoustic signal source, particularly in terms of sound intensity and frequency.
This last point is essential to determine in practice the type of devices that can guarantee an appropriate sound level (well above the ambient noise), easily recognizable and clearly distinguishable. Identified the correct device, it becomes important to evaluate the numbers and type; Sirena offers ESCAPE line, four models of siren based on two different philosophies of operation:
TRADITIONNAL SYSTEM
F3 SEV/4S AA
SEL 1SEV/4S AA
SEO 1SEV/4S AA
SEO 2SEV/4S AA
STF 1SEV/4S AA

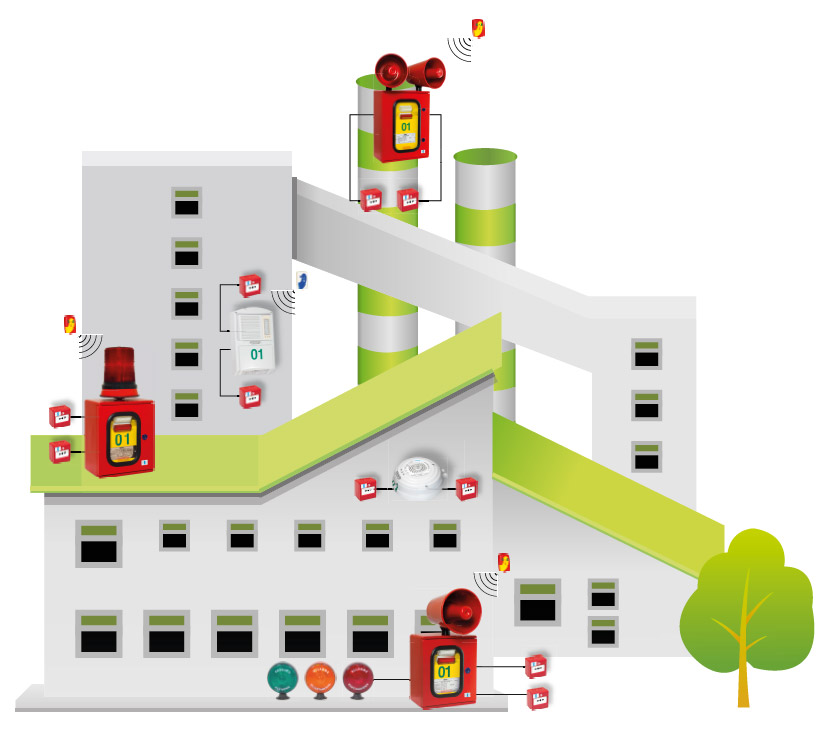

The “TRADITIONNAL” CONNECTION SYSTEM offers products that can be activated by just the closing or opening of a contact (button or relay). On the front panel of the device there are lights that indicate the system’s condition ,both the perfect operation and a failure
(problems with battery back-up or speakers’ integrity).
They have identical characteristic ,acoustic and operation, to the sirens of the serial line that will be described later, and are particularly suitable for signaling in environments with dimensions not so extended and simple structure, where the message can be managed with local controls.
“Conventional” sirens become complex to connect and manage, with a great expenditure in terms of wiring if you want to adopt individual solutions in different compartments of the same reality, in order to ensure a progressive and/or general evacuation system.
The Conventional system ensures the acoustic characteristics provided by the decrees in force: it is important to emphasize that in the system maintenance, the absence of a control operated by the central implies undoubtedly higher costs.
PCS SYSTEM
F3 SEV/4S AA PCS
SEL 1SEV/4S AA PCS
SEO 1SEV/4S AA PCS
SEO 2SEV/4S AA PCS
STF 1SEV/4S AA PCS

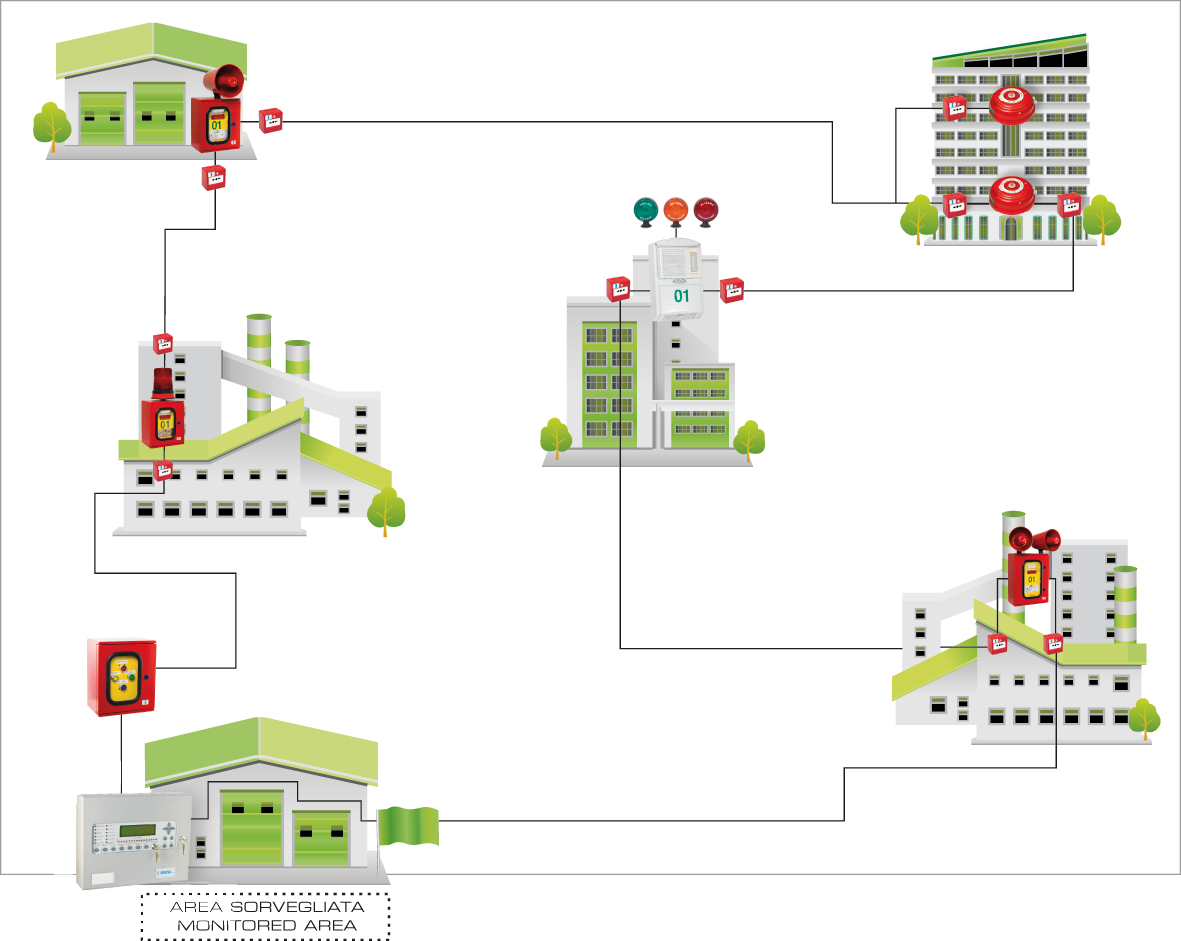

The SERIAL COMMUNICATION SYSTEM (PCS) offers great flexibility in case of implementation or modification and the ability to activate alarms is both localized and general. The needs of each company, will be examined and developed by our service PCS, together with the customer.
Its distinguishing feature is to have a constant monitoring of each element installed (sirens, lights, emergency switches), as well as the efficiency of the line in itself. Any anomalies that refers to such devices and their functions, among which are primary battery efficiency, the functionality of the magnetodynamic acoustic units of sirens and the supply network is immediately detected and reported in Central with an audible alert and a report on the visible display in real time and stored in the central (the Central has the ability to record and keep in memory up to 1,000 events).
The implemented control system allows a further economic advantage in the maintenance thanks to the immediate identification of the critical point.
-
TRADITIONAL (5) (5)
The “TRADITIONAL” CONNECTION SYSTEM offers products that can be activated by Just the closing or opening of a contact (button or relay)
-
SERIAL (7) (7)
The SERIAL COMMUNICATION SYSTEM (PCS) offers great flexibility in case of implementation or change and the possibility to activate alarms in a localized or general way.
-
SPARE PARTS AND ACCESSORIES (9) (9)
TRADITIONAL
The “TRADITIONAL” CONNECTION SYSTEM offers products that can be activated by Just the closing or opening of a contact (button or relay)
Showing all 5 results
-
F3 SEV/4S.AA
High power evacuation warning siren for residential areas APPROVAL NUMBER TRADITIONAL SYSTEM: 1328-CPR-0477 DEVICE STRUCTURE […]
product details
-
SEL 1 SEV/4S.AA
High power evacuation warning siren for residential areas APPROVAL NUMBER TRADITIONAL SYSTEM: 1328-CPR-0471 DEVICE STRUCTURE […]
product details
-
SEO 1 SEV/4S.AA
High power evacuation warning siren for industrial areas APPROVAL NUMBER TRADITIONAL SYSTEM: 1328-CPR-0473 DEVICE STRUCTURE […]
product details
-
SEO 2 SEV/4S.AA
High power evacuation warning siren for industrial areas APPROVAL NUMBER TRADITIONAL SYSTEM: 1328-CPR-0475 DEVICE STRUCTURE […]
product details
-
STF 1 SEV/4S AA
Evacuation luminous device DEVICE STRUCTURE • STROBOFLASH 20J 2F BEACON (PC) • Transparent FRONT with […]
product details
-
SERIAL
The SERIAL COMMUNICATION SYSTEM (PCS) offers great flexibility in case of implementation or change and the possibility to activate alarms in a localized or general way.
Showing all 7 results
-
F3 SEV/4S.AA PCS
High power evacuation warning siren for residential areas APPROVAL NUMBER SERIAL PCS SYSTEM: 1328-CPR-0478 DEVICE […]
product details
-
SEL 1 SEV/4S.AA PLC
High power evacuation warning siren for residential areas APPROVAL NUMBER SERIAL PCS SYSTEM: 1328-CPR-0472 DEVICE […]
product details
-
SEO 1 SEV/4S.AA PCS
High power evacuation warning siren for industrial areas APPROVAL NUMBER SERIAL PCS SYSTEM: 1328-CPR-0474 DEVICE […]
product details
-
SEO 2 SEV/4S.AA PCS
High power evacuation warning siren for industrial areas APPROVAL NUMBER SERIAL PCS SYSTEM:1328-CPR-0476 DEVICE STRUCTURE […]
product details
-
STF 1 SEV/4S AA PCS
Evacuation luminous device DEVICE STRUCTURE • STROBOFLASH 20J 2F BEACON (PC) • Transparent FRONT with […]
product details
-
SEO SEV PCS CENTRAL UNIT
The SEV SY1 AA PCS CENTRAL UNIT directs one serial line, the SEV SY2 AA […]
product details
-
BCP CONTROL BOX
The BCP PCS control box together with the SEV SY PCS central unit should be […]
product details
-
PARE PARTS AND ACCESSORIES
Showing all 9 results
-
GENERIC PUSH BUTTON
WARNING RESETTABLE CALL POINT Resettable call point for evacuation systems MANUAL RESETTABLE CALL POINT according […]
product details
-
WARNING PUSH BUTTON
WARNING RESETTABLE CALL POINT Resettable call point for evacuation systems MANUAL RESETTABLE CALL POINT according […]
product details
-
EVACUATION PUSH BUTTON
EVACUATION RESETTABLE CALL POINT Resettable call point for evacuation systems MANUAL RESETTABLE CALL POINT according […]
product details
-
FIRE PUSH BUTTON
FIRE ALARM RESETTABLE CALL POINT Resettable call point for evacuation systems MANUAL RESETTABLE CALL POINT […]
product details
-
ALERT SIGN
WARNING SIGN 150X175/A ACCORDING TO UNI 7564/16-2007 PART NO. 55325
product details
-
EVACUATION SIGN
EVACUATION SIGN 150X175/A ACCORDING TO UNI 7564/16-2007 PART NO. 55326
product details
-
FIRE ALARM SIGN
FIRE ALARM SIGN 150X175/A ACCORDING TO UNI 7564/16-2007 PART NO. 55327
product details
-
ASSEMBLY POINT SIGN
ASSEMBLY POINT SIGN 230×290 ACCORDING TO UNI 7564/16-2007 PART NO. 55328
product details
-
EX 025 PAG SWITCH (ATEX EX-D)
EX 025 PAG SWITCH (ATEX EX-D) EX 025 PAG: Explosion proof emergency switch ideal for […]
product details
-
