ELYPS

Sirena has a very simple mission: to create innovative and high-quality visual and acoustic signaling devices.

At Sirena, we’re used to indicating the path to follow, we’re aware of our duties as well as our responsibilities.

Our job matches our vocation: defining the standards of the signaling industry.

When we decided to engineer a new range of stacklights, we did not settle down with a simple redesign of the market standards but instead we’ve taken the challenge to revolutionize the concept at its very roots.

We thought about a stacklight with an innovative shape, aesthetically revolutionary, capable of satisfying the most common dimensional standards.

We thought about patented optics capable of performing at 360 degrees.

We thought about state-of-the-art electronics capable of satisfying your needs.

We thought about three different configuration philosophies capable of increasing the added value of the stacklight.

We thought about five unique mounting bases capable of solving the most challenging installation issues.

But, more than everything else, we thought about You.

We’ve done all this because our job is to make sure your job becomes as easy and efficient as possible.

Because we understand how important it is to put You in the condition to create added value. Because we know how much You trust us and because we’re flattered you’ve be doing so for the past 40 years…

The ELYPS modular stacklight range is made of four groups of modules: mounting bases, wiring modules, light modules and acoustic modules.

MB Mounting Bases are engineered for a versatile stacklight installation, allowing the devices to be installed always in the ideal position.

WM Wiring Modules allow to choose voltages as well as the configuration philosophy, giving the possibility to create low or high tension devices, with steady or flashing light and with the possibility to control the flashing pattern (i.e. via PLC) directly from the base of the stacklight.

LM Light Modules have been engineered to satisfy all possible needs.

Different levels of light intensity as well as different lenses technology (allCOLOR, allCLEAR, Proximity) and different flashing patterns, offer a unique and complete range.

AM Acoustic Modules are based on two technologies: piezoelectric and magnetodynamic.

Both versions allow the use of two separate channels giving the possibility of utilizing the stacklight with two different sounds, according to the type of message one needs to deliver.

The IP65 protection grade makes ELYPS ideal also for outdoor applications.

ELYPS  is available in three color options: allGRAY(industrial RAL 7035), allBLACK (industrial/commercial RAL 9005) e allWHITE (civil/commercial RAL 9003).

TWS

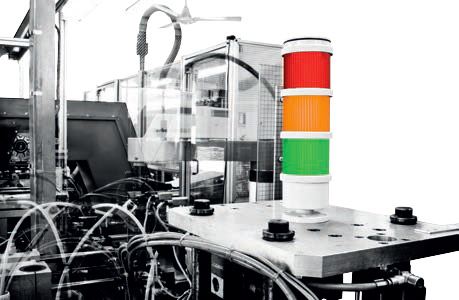

Sirena, leader in the visual and acoustic signaling industry, is aware of the continuous manufacturing renovation process characterizing the industrial world. For this reason, two different ranges of stacklights have been developed, especially engineered for installation on machines and in industrial sites: TWS modular stacklights and LUXOR towers.

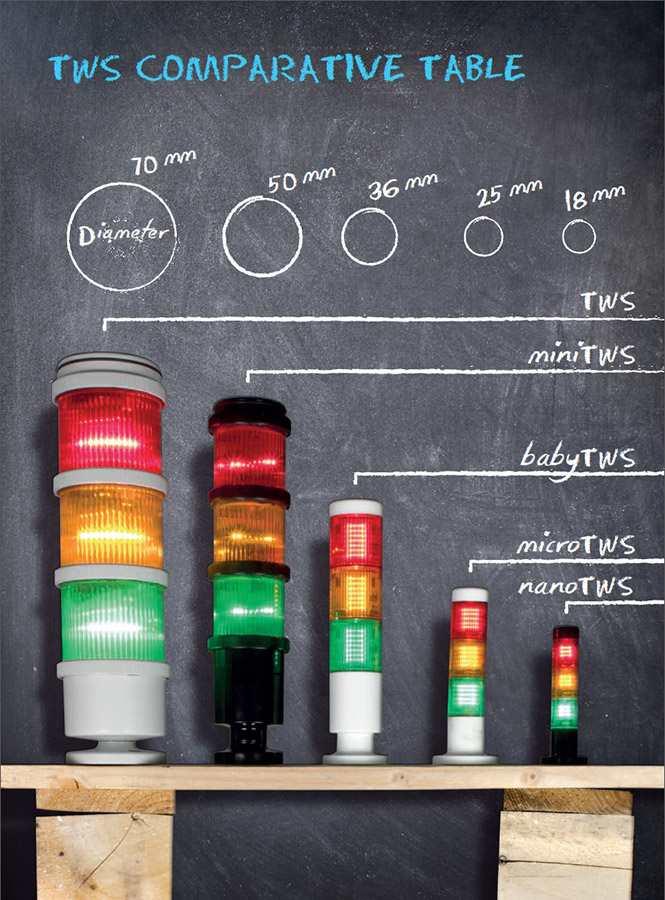

TWS is available in five different sizes suitable for all types of industrial applications:

• TWS: 70 mm diameter

Traditional, integrated LED, Xenon and sounder modules completed with a wide range of accessories

• miniTWS: 50 mm diameter

• babyTWS: 36 mm diameter

• microTWS: 25 mm diameter

• nanoTWS: 18 mm diameter

The LUXOR range is destined for applications on large-size machineries and large-size industrial sites:

• LUXOR 3: 90 mm diameter

• LUXOR 4: 136 mm diameter

MACHINE DIRECTIVE

Sirena signaling devices are suitable for visual and acoustic signaling on machinery in conformity with the European Machine Directive 2006/42/EC (29/12/2009).

The 2006/42/EC Machine Directive refers to regulations that cover risk analysis in the design and construction process of machinery.

The directive requires manufacturers to make a detailed analysis regarding the safety of machinery and systems. Data relating to safety of machinery components must also be included at the project stage.

It must be specified that not all devices installed are directly involved in terms of safety of machinery and its applications. It is also necessary to distinguish between relevant and not relevant applications for the purpose of safety. For this reason, the visual and acoustic signaling devices used in numerous informative applications are to be considered not relevant for the purpose of safety. A signal can, for example, simply inform a person if a process is in progress or has been completed; often used to detect downtime and increase productivity.

Sirena’s signaling devices comply with the Machinery Directive. They respect all the regulations relating to colors and safety signals and can be used by machine builders.


AUTOMAX | Devices for industrial automation

• ELYPS (19) (19)



  ELYPS modular stacklight allows three different configuration philosophies according to the final application.
  • Steady Light Stacklight • Flashing Light Stacklight • Stacklight with Fashing Controls in the Base

• TWS (44) (44)



  The main characteristics that distinguish the TWS stacklights range are: • Unique Electrical Safety • Easy Installation • A Wide Range of Accessories for Optimal Versatility

• LUXOR LED (1) (1)



  LUXOR stacklights have been developed to meet modern requirements in industrial signaling. It is the only stacklight on the market with a diameter of 135 mm (LUXOR 4) and 90 mm (LUXOR 3)
