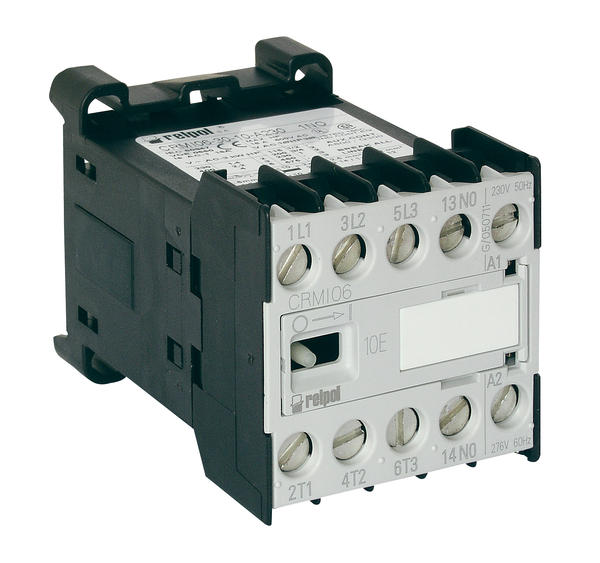

小型交直流接触器Mini-contactors CRMI 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
Mini-contactors up to 100 A: CRMI05, CRMI09. AC and DC control.
|
Coil AC |
Coil DC |
||
|
Coil voltage |
from the 24 V A to 400 V AC |
24 V DC and 220 V DC |
|
|
Rated insulation voltage V |
690 V |
||
|
Rated operating current (380 V) |
AC3 |
from the 5 to 9 A |
from the 5 to 9 A |
|
Rated outputs of three phase motors at 50 Hz [kW] |
AC3 400/380 V |
from the 2,2 to 4 |
from the 2,2 to 4 |
|
Range of supply coil voltage |
( 0,8 - 1,1 ) Us |
||
|
Conventional thermal current |
AC1 |
16 |
16 |
|
three-pole and four-pole |
|||
Products
 |
CRMI00-22-00-A230
Auxiliary minicontactor, 4-poles - 2 N/O + 2 N/C, Ie:4A/230VAC, Coil: 230VAC
 |
CRMI00-31-00-A230
Auxiliary minicontactor, 4-poles - 3 N/O + 1 N/C, Ie:4A/230VAC, Coil: 230VAC
 |
CRMI00-40-00-A230
Auxiliary minicontactor, 4-poles - 4 N/O, Ie:4A/230VAC, Coil: 230VAC
 |
CRMI05-30-01-A024
Minicontactor 3-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 24VAC, aux. contacts: 1N/C
 |
CRMI05-30-01-A048
Minicontactor 3-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 48VAC, aux. contacts: 1N/C
 |
CRMI05-30-01-A230
Minicontactor 3-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 230VAC, aux. contacts: 1N/C
 |
CRMI05-30-10-A024
Minicontactor 3-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 24VAC, aux. contacts: 1N/O
 |
CRMI05-30-10-A048
Minicontactor 3-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 48VAC, aux. contacts: 1N/O
 |
CRMI05-30-10-A230
Minicontactor 3-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 230VAC, aux. contacts: 1N/O
 |
CRMI05-30-10-D024
Minicontactor 3-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 24VDC, aux. contacts: 1N/O
 |
CRMI05-40-00-A024
Minicontactor 4-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 24VAC
 |
CRMI05-40-00-A230
Minicontactor 4-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 230VAC
 |
CRMI05-40-00-D024
Ministycznik 4-biegunowy, Ie: AC3 - 5 A / 400 V (2,2 kW), AC1 - 16 A / 400. Bieguny: L1-T1, L2...
 |
CRMI09-30-01-A024
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 24VAC, aux. contacts: 1N/C
 |
CRMI09-30-01-A048
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 48VAC, aux. contacts: 1N/C
 |
CRMI09-30-01-A230
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 230VAC, aux. contacts: 1N/C
 |
CRMI09-30-10-A024
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 24VAC, aux. contacts: 1N/O
 |
CRMI09-30-10-A042
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 42VAC, aux. contacts: 1N/O
 |
CRMI09-30-10-A048
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 48VAC, aux. contacts: 1N/O
 |
CRMI09-30-10-A230
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 230VAC, aux. contacts: 1N/O
 |
CRMI09-30-10-A400
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 400VAC, aux. contacts: 1N/O
 |
CRMI09-30-10-D024
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 24VDC, aux. contacts: 1N/O
 |
CRMI09-30-10-D220
Minicontactor 3-poles, Ie:9A/400V (AC3) (4 kW), Coil: 220VDC, aux. contacts: 1N/O
 |
CRMI09-40-00-A024
Minicontactor 4-poles, Ie:9A/400V (AC3) (4 kW), Coil: 24VAC
 |
CRMI09-40-00-A048
Minicontactor 4-poles, Ie:9A/400V (AC3) (4 kW), Coil: 48VAC
 |
CRMI09-40-00-A230
Minicontactor 4-poles, Ie:9A/400V (AC3) (4 kW), Coil: 230VAC
 |
CRMI09-40-00-A400
Ministycznik 4-biegunowy, Ie: AC3 - 8,4 A / 400 V (4 kW), AC1 - 16 A / 400 V. Bieguny: L1-T1,...
 |
CRMI09-40-00-D024
Minicontactor 4-poles, Ie:5A/400V (AC3) (2,2 kW), Coil: 24VDC
 |
CRMI09-40-00-D220
Minicontactor 4-poles, Ie:9A/400V (AC3) (4 kW), Coil: 220VDC
Accessories
 |
CRI10-40
Auxiliary contacts for minicontactors CRMI - 4N/O
 |
CRI10-31
Auxiliary contacts for minicontactors CRMI - 3N/O+1N/C
 |
CRI10-22
Auxiliary contacts for minicontactors CRMI - 2N/O+2N/C
 |
CRI10-20
Auxiliary contacts for minicontactors CRMI - 2N/O
 |
CRI10-13
Auxiliary contacts for minicontactors CRMI - 1N/O+3N/C
 |
CRI10-11
Auxiliary contacts for minicontactors CRMI - 1N/O+1N/C
 |
CRI10-04
Auxiliary contacts for minicontactors CRMI - 4N/C
 |
CRI10-02
Auxiliary contacts for minicontactors CRMI - 2N/C
