MT-TUB_7
Panel MT-TUB_7

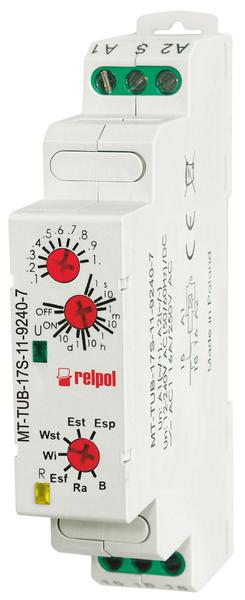

Time relay MT-TUB-... (7 time functions)
Multifunction time relay (7 time functions; 8 time ranges); Contacts: 1 CO; Rated load AC1 - 10 A/250 V AC; AC/DC input voltages; Application: in low-voltage systems


Contact data

Number and type of contacts



1 C/O

Contact material



AgNi

Max. switching voltage

AC

400 V

DC

300 V

Rated load

AC1

10 A / 250 V AC

Max. breaking capacity

AC1

16 A / 250 V AC

Input control circuit

Rated voltage

AC: 50/60 Hz AC/DC

12…240 V

Insulation

Insulation rated voltage



250 V A

Rated surge voltage



2 500 V 1,2 / 50 µs

Dielectric strength:

- input - output

2 500 V AC

- contact clearance

1 000 V AC

General data

Ambient temperature operating

-20...+45 oC

Time module data

Functions

 B, Ra, Esf, Wi, Wst, Est, Esp

Time ranges

 0,1s...10 d

Min. time of pulse duration

 AC ≥ 50 ms, DC ≥ 20 ms
