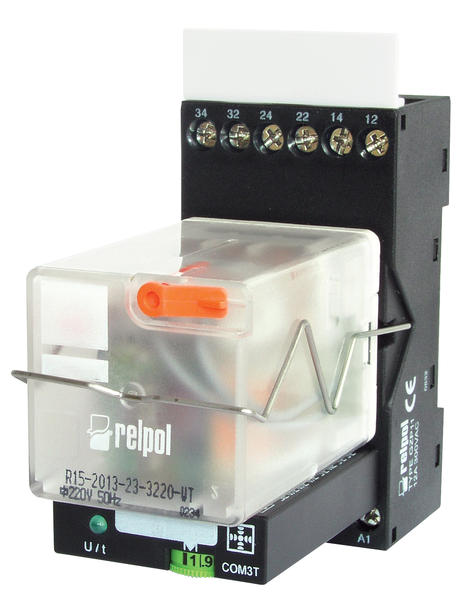

Time relay PIR15...T
Contacts: 2CO; 3 CO, rated load AC1 - 10 A/250 V AC; colis AC or DC; 35 mm rail mount or on panel mounting; (set: relay R15, plug-in socket, time module T(COM3), spring wire clip)
|
Contact data |
||
|
Number and type of contacts |
2 C/O, 3 C/O |
|
|
Contact material |
AgNi |
|
|
Max. switching voltage |
AC |
440 V |
|
DC |
250 V |
|
|
Rated load |
AC1 |
10 A / 250 V AC |
|
Max. load |
AC1 |
2 500 VA |
|
Input control circuit |
||
|
Rated voltage |
50/60 Hz AC |
24 - 240 V |
|
DC |
12 - 220 V |
|
|
Insulation |
||
|
Insulation rated voltage |
250 V A |
|
|
Dielectric strength: |
||
|
- input - output- contact clearance- pole - pole |
2 500 V AC |
|
|
1 500 V AC |
||
|
2 500 V AC |
||
|
General data |
||
|
Ambient temperature operating |
-40...+55 oC |
|
|
Time module data |
||
|
Functions |
E, E(S), Wu, Wu(S), Bp, Bp(S), Bi, Bi(S), R, Ws, Wa, Es |
|
|
Time intervals |
1s … 10 d |
|
|
Min. time of pulse duration |
100 ms |
|
Products
 |
PIR152-024AC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 24VAC, Set: R15+COM3
 |
PIR152-024DC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 24VDC, Set: R15+COM3
 |
PIR152-048AC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 48VAC, Set: R15+COM3
 |
PIR152-048DC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 48VDC, Set: R15+COM3
 |
PIR152-060AC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 60VAC, Set: R15+COM3
 |
PIR152-060DC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 60VDC, Set: R15+COM3
 |
PIR152-110AC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 110VAC, Set: R15+COM3
 |
PIR152-110DC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 110VDC, Set: R15+COM3
 |
PIR152-120AC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 120VAC, Set: R15+COM3
 |
PIR152-120DC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 120VDC, Set: R15+COM3
 |
PIR152-220DC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 220VDC, Set: R15+COM3
 |
PIR152-230AC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 230VAC, Set: R15+COM3
 |
PIR152-240AC-00T
Time relay, multifunction, Contacts: 2C/O, Supply: 240VAC, Set: R15+COM3
 |
PIR153-024AC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 24VAC, Set: R15+COM3
 |
PIR153-024DC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 24VDC, Set: R15+COM3
 |
PIR153-048AC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 48VAC, Set: R15+COM3
 |
PIR153-048DC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 48VDC, Set: R15+COM3
 |
PIR153-060AC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 60VAC, Set: R15+COM3
 |
PIR153-060DC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 60VDC, Set: R15+COM3
 |
PIR153-110AC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 110VAC, Set: R15+COM3
 |
PIR153-110DC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 110VDC, Set: R15+COM3
 |
PIR153-120AC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 120VAC, Set: R15+COM3
 |
PIR153-120DC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 120VDC, Set: R15+COM3
 |
PIR153-220DC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 220VDC, Set: R15+COM3
 |
PIR153-230AC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 230VAC, Set: R15+COM3
 |
PIR153-240AC-00T
Time relay, multifunction, Contacts: 3C/O, Supply: 240VAC, Set: R15+COM3
Accessories
 |
COM3
Multifunction time module for relay sockets
