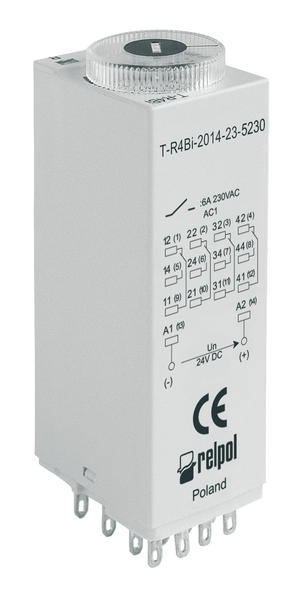

Time relay T-R4

Single-function, single-voltage

Contact data
Number and type of contacts		4 C/O
Contact material		AgNi
Max. switching voltage	AC	250 V
Max. switching voltage	DC	250 V
Rated load	AC1	6 A / 230 V AC
Max. load	AC1	1 500 VA
Input control circuit
Rated voltage	50/60 Hz AC	24 - 230 V
	DC	12 - 24 V
Insulation
Insulation rated voltage		250 V A
Dielectric strength:
- input - output - contact clearance		2 500 V AC
- input - output - contact clearance		1 500 V AC
General data
Ambient temperature operating		-20...+55^oC
Time module data
Functions		E, Wu, Bp, Bi
Time intervals		0,1s … 100 h
Sockets	GZT4, GZM4

Products

T-R4Bi-2014-23-1012

Time relay, single function, Contacts:4C/O, Supply:12VDC, Function Bi-flasher pulse first.

T-R4Bi-2014-23-1024

Time relay, single function, Contacts:4C/O, Supply:24VDC, Function Bi-flasher pulse first.

T-R4Bi-2014-23-5230

Time relay, single function, Contacts:4C/O, Supply:230VAC, Function Bi-flasher pulse first.

T-R4Bp-2014-23-1012

Time relay, single function, Contacts:4C/O, Supply:12VDC, Function Bp-flasher pause first.

T-R4Bp-2014-23-1024

Time relay, single function, Contacts:4C/O, Supply:24VDC, Function Bp-flasher pause first.

T-R4Bp-2014-23-5230

Time relay, single function, Contacts:4C/O, Supply:230VAC, Function Bp-flasher pause first.

T-R4E-2014-23-1012

Time relay, single function, Contacts:4C/O, Supply:12VDC, Function E-ON Delay.

T-R4E-2014-23-1024

Time relay, single function, Contacts:4C/O, Supply:24VDC, Function E-ON Delay.

T-R4E-2014-23-5024

Time relay, single function, Contacts:4C/O, Supply:24VAC, Function E-ON Delay.

T-R4E-2014-23-5230

Time relay, single function, Contacts:4C/O, Supply:230VAC, Function E-ON Delay.

T-R4Wu-2014-23-1012

Time relay, single function, Contacts:4C/O, Supply:12VDC, Function Wu- Single shot.

T-R4Wu-2014-23-1024

Time relay, single function, Contacts:4C/O, Supply:24VDC, Function Wu- Single shot.

T-R4Wu-2014-23-5230

Time relay, single function, Contacts:4C/O, Supply:230VAC, Function Wu- Single shot.

T-R4Bi-2014-23-5024

Time relay, single function, Contacts:4C/O, Supply:24VAC, Function Bi-flasher pulse first.

T-R4Bi-2014-23-5115

Time relay, single function, Contacts:4C/O, Supply:115VAC, Function Bi-flasher pulse first.

T-R4Bp-2014-23-5024

Time relay, single function, Contacts:4C/O, Supply:24VAC, Function Bp-flasher pause first.

T-R4Bp-2014-23-5115

Time relay, single function, Contacts:4C/O, Supply:115VAC, Function Bp-flasher pause first.

T-R4E-2014-23-5115

Time relay, single function, Contacts:4C/O, Supply:115VAC, Function E-ON Delay.

T-R4Wu-2014-23-5024

Time relay, single function, Contacts:4C/O, Supply:24VAC, Function Wu- Single shot.

T-R4Wu-2014-23-5115

Time relay, single function, Contacts:4C/O, Supply:115VAC, Function Wu- Single shot.
