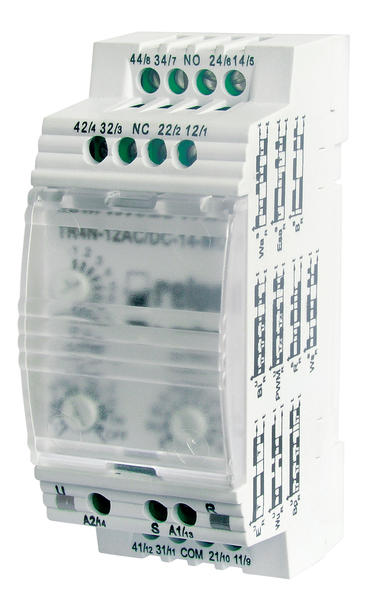

Time relay TR4N 4CO
10-function electronic time relays in compact cover
|
Contact data |
||
|
Number and type of contacts |
4 C/O |
|
|
Contact material |
AgNi |
|
|
Max. switching voltage |
AC |
250 V |
|
DC |
250 V |
|
|
Rated load |
AC1 |
6 A / 250 V AC |
|
Max. breaking capacity |
AC1 |
1 500 VA |
|
Input control circuit |
||
|
Rated voltage |
50/60 Hz AC |
115 … 230 V |
|
AC: 50/60 Hz AC/DC |
12…240 V |
|
|
Insulation |
||
|
Dielectric strength: |
||
|
input - output |
2 500 V AC |
|
|
General data |
||
|
Ambient temperature operating |
-20...+55 oC |
|
|
Time module data |
||
|
Functions |
E, Wu, Bp, Bi, PWM, R, Ws, Wa, Esa, B |
|
|
Time intervals |
1s...10 |
|
|
Min. time of pulse duration |
AC: ≥ 25 ms, DC: ≥ 15 ms |
|
Products
 |
TR4N-230AC-14-M
Time relay, multifunction: Contacts: 4C/O, Rated load: 6A, Supply: 230VAC
 |
TR4N-24AC/DC-14-M
Time relay, multifunction: Contacts: 4C/O, Rated load: 6A, Supply: 24VAC/DC
 |
TR4N-115AC-14-M
Time relay, multifunction: Contacts: 4C/O, Rated load: 6A, Supply: 115VAC
 |
TR4N-12AC/DC-14-M
Time relay, multifunction: Contacts: 4C/O, Rated load: 6A, Supply: 12VDC
