Sterownik programowalny PLC

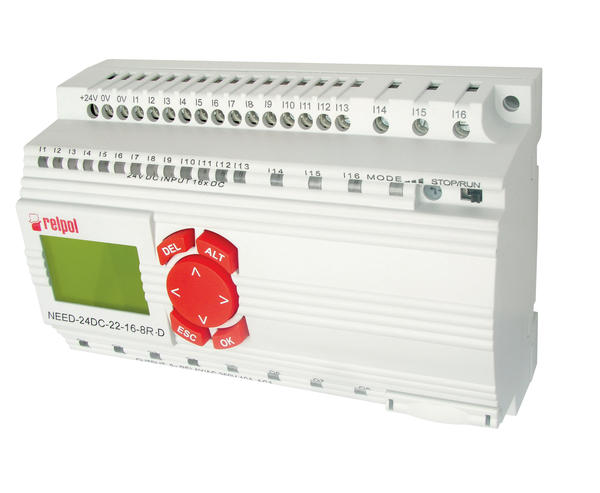

Relays with LCD display and keyboard
NEED 16 inputs / 8 outputs

NEED - Programmable Relay - LCD display and keyboard

  • 16 inputs (13 digital inputs and 3 analog-digital inputs)
  • Programming in graphic language LAD or text language STL
  • LED signaling the status of the relay and inputs / outputs

Structure of NEED system

  • NEED-...-D - programmable relay
  • Cable for programming and diagnostics for connection to PC computer:
    - RS232 - NEED-PC-15B
    - USB - NEED-PC-15C
  • NEED-M-4KB: external memory card
  • Free PC NEED software for editing, compiling, programming of the relay and the external memory card
    (programming in graphic language LAD and text language STL)  - Download
  • User’s manual - Download



Odrering codes

Supply voltage

  Outputs

Rated load outputs AC1

NEED-12DC-22-16-8R-D

12 V DC

8 relay outputs

 10 A/ 250 V AC

NEED- 24DC-22-16-8R-D

 24 V DC

8 relay outputs

 10 A/ 250 V AC

NEED-24DC-22-16-8T-D

24 V DC

 8 transistor outputs

 0,5 A/ 24 DC

NEED-220DC-22-16-8R-D

 220 V DC

8 relay outputs

 10 A/ 250 V AC

NEED-230AC-22-16-8R-D

230 V AC

8 relay outputs

  10 A/ 250 V AC

Products

NEED-12DC-22-16-8R-D

Przekaźnik programowalny, 16wejść/8wyjść, Zasilanie: 12VDC, z wyświetlaczem, wersja 22

NEED-230AC-22-16-8R-D

Przekaźnik programowalny, 16wejść/8wyjść, Zasilanie: 230VAC, z wyświetlaczem, wersja 22

NEED-24DC-22-16-8R-D

Przekaźnik programowalny, 16wejść/8wyjść, Zasilanie: 24VDC, z wyświetlaczem, wersja 22

Accessories

NEED-PC-15B

Programming cable, RS232 connection, for version 11 i 22

NEED-PC-15C

Programming cable, USB connection, for version 11 i 22
