Relays without LCD display
NEED 8 inputs / 4 outputs

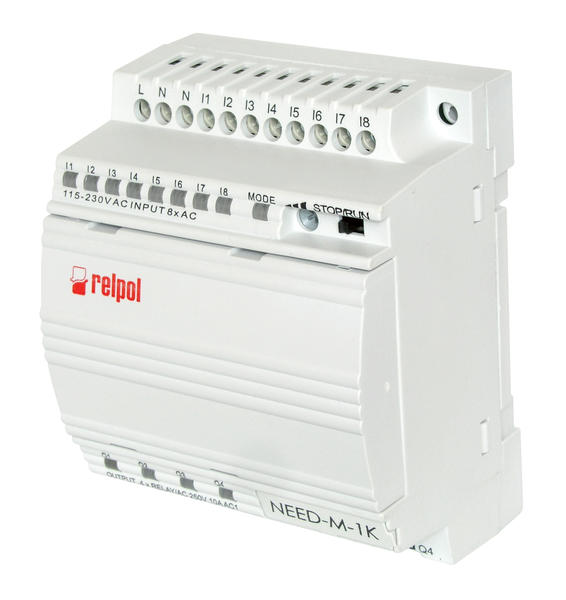

NEED - Programmable Relay without display
- 8 inputs (6 digital inputs and 2 analog-digital inputs)
- Programming in graphic language LAD or text language STL
- LED signaling the status of the relay and inputs / outputs
Structure of NEED system
- NEED-...-D - programmable relay
-
Cable for programming and diagnostics for connection to PC computer:
- RS232 - NEED-PC-15B
- USB - NEED-PC-15C - NEED-M-4KB: external memory card
-
Free PC NEED software for editing, compiling, programming of the relay and the external memory card
(programming in graphic language LAD and text language STL) - Download - User’s manual - Download
|
Odrering codes |
Supply voltage |
Outputs |
Rated load outputs AC1 |
|
NEED-12DC-11-8-4R |
12 V DC |
8 relay outputs |
10 A/ 250 V AC |
|
NEED- 24DC-11-8-4R |
24 V DC |
8 relay outputs |
10 A/ 250 V AC |
|
NEED-24DC-11-8-4T |
24 V DC |
8 transistor outputs |
0,5 A/ 24 DC |
|
NEED-220DC-11-8-4R |
220 V DC |
8 relay outputs |
10 A/ 250 V AC |
|
NEED-230AC-11-8-4R |
230 V AC |
8 relay outputs |
10 A/ 250 V AC |
Products
 |
NEED-230AC-11-08-4R
Programmable relay, 8inputs/4outputs, Zasilanie: 230VAC, without display, version 11
 |
NEED-24DC-01-08-4R
Programmable relay, 8inputs/4outputs, Zasilanie: 24VDC, without display, version 01
 |
NEED-24DC-11-08-4R
Programmable relay, 8inputs/4outputs, Zasilanie: 24VDC, without display, version 11
 |
NEED-12DC-01-08-4R
Programmable relay, 8inputs/4outputs, Zasilanie: 12VDC, without display, version 01
 |
NEED-12DC-11-08-4R
Programmable relay, 8inputs/4outputs, Zasilanie: 12VDC, without display, version 11
 |
NEED-220DC-11-08-4R
Programmable relay, 8inputs/4outputs, Zasilanie: 220VDC, without display, version 11
Accessories
NEED-M-1K
Memory card (1 kB), for version 01
NEED-M-1KB
Memory card (1 kB), for version11
NEED-PC-15A
Programming cable, RS232 connection, for version 01
