ENYA Series
Modern technology for building services
To meet the requirements of its primary application in building services, the product range of this latest TELE series focuses on basic functions. For maximum ease of wiring, the monitored circuit is used as the current source wherever possible.
| Type | Function | Datasheets | Images | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

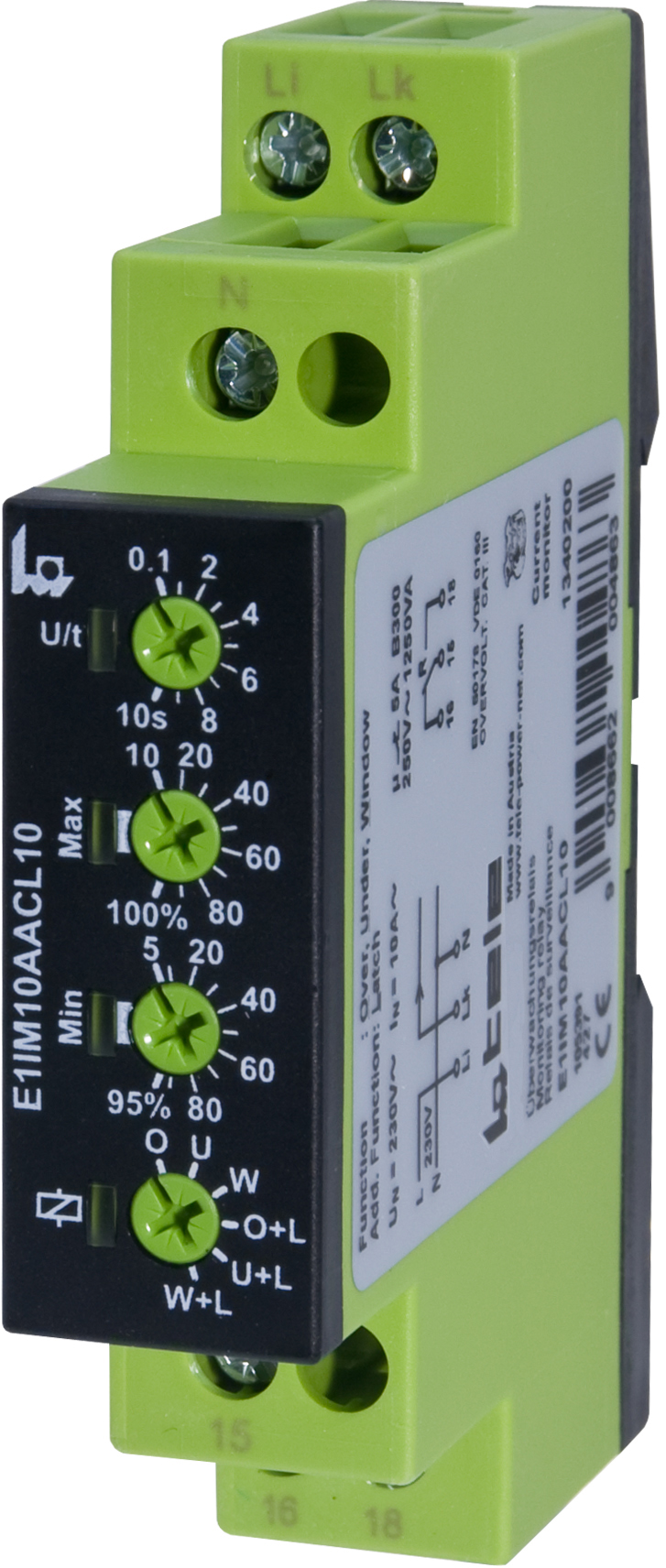

| E1IM10AACL10 230VAC | Current monitoring 1-phase; Multifunction; to 10A; fault latch; 1 CO |
 |
EN | DE | IT |
 |
1 | |||||||
| E1IU500mAAC01 | Current monitoring single phase in 230V mains; Underfunction; to 500mA; 1 CO |
|
EN | DE | IT |
|
1 | |||||||
| E1IU5AAC01 | Current monitoring single phase in 230V mains; Underfunction; to 5A; 1 CO |
|
EN | DE | IT |
|
1 | |||||||
| E1PF400VSY01 | Voltage monitoring 3-phase against N; Phase sequence monitoring; Phase failure monitoring; Asymmetry monitoring; 1 CO |
|
EN | DE | IT |
|
1 | |||||||
| E1PF480Y/277VSY01 | Voltage monitoring 3-phase; Phase sequence monitoring; Phase failure monitoring; Asymmetry monitoring; 1 CO |
|
EN | DE | ||||||||||
| E1PF480Y/277VSY10 | Voltage monitoring 3-phase with adjustable delay; Phase sequence monitoring; Phase failure monitoring; Asymmetry monitoring; 1 CO |
|
EN | DE | ||||||||||
| E1UM230V01 | Voltage monitoring single phase; Multifunction; to 230V; 1 CO |
|
EN | DE | IT |
|
1 | |||||||
| E1UU230V01 | Voltage monitroing single phase; Underfunction; to 230V; 1 CO |
|
EN | DE | IT |
|
1 | |||||||
| E1YF400V01 0,85 | Voltage monitoring 3-phase against N; Voltage failure monitoring; 400V; 1 CO; fixed threshold voltage Us=195,5V |
|
EN | DE | IT |
|
1 | |||||||
| E1YF400V01 0.70 | Voltage monitoring 3-phase against N; Voltage failure monitoring; 400V; 1 CO; fixed threshold voltage Us=161V |
|
EN | DE | IT |
|
1 | |||||||
| E1YF400VT01 0,85 | Voltage monitoring 3-phase against N; Voltage failure monitoring; 400V; 1 CO; optional testfunction; fixed threshold voltage Us=195,5V |
|
EN | DE | IT |
|
1 | |||||||
| E1YM400VS10 | Voltage monitoring 1- or 3-phase; Multifunction; monitoring of phase failure; monitoring of phase sequence selectabel; 1 CO; Adjustable delay |
|
EN | DE | IT |
|
1 | |||||||
| E1YM480Y/277VS10 | Voltage monitoring 1- or 3-phase; Multifunction; monitoring of phase failure; monitoring of phase sequence selectabel; 1 CO; Adjustable delay |
|
EN | DE | ||||||||||
| E1YU400V01 | Voltage monitoring 3-phase against N; Undervoltagemonitoring; 400V; 1 CO; adjustable threshold voltage Us=160-240V |
|
EN | DE | IT |
|
1 | |||||||
| E3IF500mAAC20 | Current monitoring single phase; Consumer failure detection, under current monitoring with time delays; 2 CO |
|
EN | DE |
|
1 | ||||||||
| E3IM10AL20 230V AC | Current monitoring single phase; Multifunction; to 10A; Fault latch; 2 CO, Adjustable delay |
|
EN | DE |
|
1 | ||||||||
| E3LC10 230V AC | Level monitoring, Multifunction, 1 CO, reduced probe current, delay 5s fixed |
|
EN | DE |
|
1 | ||||||||
| E3LM10 230VAC | Level monitoring, Multifunction, 1 CO, Adjustable delay |
|
EN | DE | IT |
|
1 | |||||||
| E3PF400VSY02 | Voltage monitoring 3-phase against N; Phase sequence monitoring; Phase failure monitoring; Asymmetry monitoring; 2 CO |
|
EN | DE | IT |
|
1 | |||||||
| E3TF01 230VAC | Temperature monitoring; 1 CO |
|
EN | DE | IT |
|
1 | |||||||
| E3YF400V02 0.85 | Voltage monitoring 3-phase against N; Voltage failure monitoring; 400V; 2 CO; fixed threshold voltage Us=195,5V |
|
EN | DE | IT |
|
1 | |||||||
| E3YF400VFAL02 | Voltage monitoring 3-phase against N in accordance with VDE 0126-1-1; fast voltage failure monitoring; 400V; Fault latch; 2 CO |
|
EN | DE | IT |
|
1 | |||||||
| E3YF400VT02 0.85 | Voltage monitoring 3-phase against N; Voltage failure monitoring; 400V; 2 CO; optional testfunction; fixed threshold voltage Us=195,5V |
|
EN | DE | IT |
|
1 | |||||||
| E3YM230VS20 | Voltage monitoring 1- or 3-phase; Multifunction; monitoring of over- and under-voltage; monitoring of phase sequence selectable; 2 CO; Adjustable delay |
|
EN | DE |
|
1 | ||||||||
| E3YM400VSY20 | Voltage monitoring 3-phase; Multifunction; monitoring of over- and under-voltage; asymmetry monitoring and monitoring of phase sequence selectable; 2 CO; Adjustable delay |
|
EN | DE | ||||||||||
| E3YU400V02 | Voltage monitoring 3-phase against N; undervoltagemonitoring; 400V; 2 CO; adjustable threshold voltage Us=160-240V |
|
EN | DE | IT |
|
1 | |||||||
