交直流电流监控继电器(工业级)    订购编号:MR-GI1M2P-TR2

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

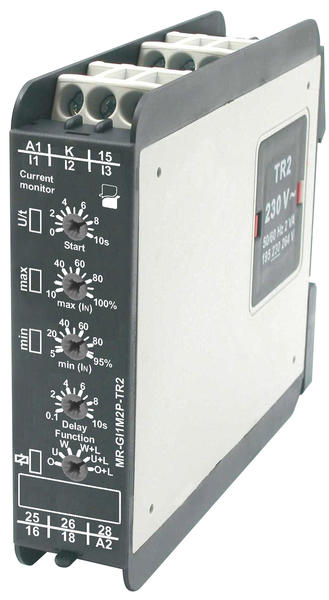

Relay MR-GI1M2P-TR2
AC/DC current monitoring in 1-phase mains


Meassuring circuit data

Functions

OVER, OVER+LATCH, UNDER, UNDER+LATCH, WIN, WIN+LATCH

timing adjustment for start-up suppression time and tripping delay

Time intervals (timing adjustment)

start-up suppression time (0...10 s) tripping delay (0,1...10 s)

LED indicator

yellow LED, green LED, red LED

Measuring circuit

• measuring variable

DC or AC sinus, 16,6...400 Hz (frequency response: -10…+5%)

• measuring input

np. 0,1 A AC/DC  terminals: K-I1(+)

1 A AC/DC  terminals: K-I2(+)

10 A AC/DC  terminals: K-I3(+)

• swiching threshold Us

max: 0,1< In < 1,0  min: 0,05 < In < 0,95

Input circuit

Supply voltage U

12 … 400 V AC

Rated power consumption

2,0 VA / 1,5 W

Rated frequency

as per the specification of TR2 supply transformer

Output circuit

Number and type of contacts

2 C/O - changeover

Rated load AC1

5 A / 250 V AC

Max. breaking capacity AC1

1 250 VA

Insulation

Rated surge voltage

4 000 V AC

Overvoltage category

III PN-EN 60664-1

Insulation pollution degree

3 PN-EN 60664-1

Products

MR-GI1M2P-TR2

Monitoring relay, Contacts:2C/O, AC/DC current monitoring in 1-phase mains
