AC current monitoring in 1-phase mains
• Multifunctions monitoring relays
• Histeresis mode and the possibility of setting
|
Meassuring circuit data |
|
|
Functions |
OVER, OVER+LATCH, UNDER, UNDER+LATCH, WIN, WIN+LATCH |
|
histeresis mode and the possibility of setting the tripping delay |
|
|
Time intervals (timing adjustment) |
tripping delay (0,1...10 s) |
|
LED indicator |
yellow LED, red LED, green LED |
|
Measuring circuit |
|
|
• terminals |
(N)-Li-Lk |
|
• measuring input |
10 AAC |
|
• swiching threshold Us |
max.: 0,1 < In < 1,0 min.: 0,05 < In < 0,95 |
|
Input circuit |
|
|
Supply voltage U |
230 V AC; terminals (N)-Li |
|
Rated voltage Un |
230 V AC |
|
Rated frequency |
AC: 48...63 Hz |
|
Output circuit |
|
|
Number and type of contacts |
1 C/O - changeover |
|
Rated load AC1 |
5 A / 250 V AC |
|
Max. breaking capacity AC1 |
1 250 VA |
|
Insulation |
|
|
Rated surge voltage |
4 000 V AC |
|
Overvoltage category |
III PN-EN 60664-1 |
|
Insulation pollution degree |
2, if built-in 3 PN-EN 60664-1 |
Products
 |

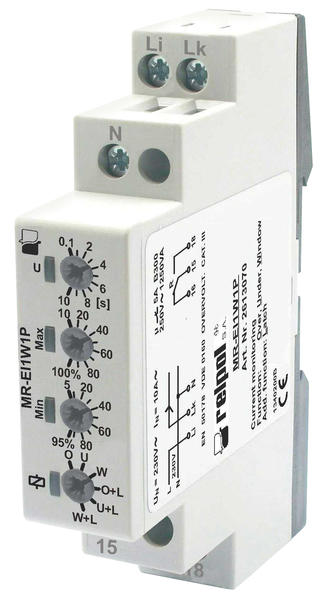

MR-EI1W1P
Monitoring relay, Contacts:1C/O, AC current monitoring in 1-phase mains
