Voltage monitoring in 3-phase mains
• Monitoring of phase sequence and phase failure
• Monitoring of asymmetry
• Connection of neutral wire optional
• Supply voltage = measuring voltage
|
Meassuring circuit data |
|
|
Functions |
monitoring of phase sequence, phase failure and asymmetry |
|
with adjustable asymmetrie, connection of neutral wire optional |
|
|
LED indicator |
yellow LED, green LED |
|
Measuring circuit |
|
|
• terminals |
(N)-L1-L2-L3 |
|
• measuring variable |
3N-, sinus, 48…63 Hz |
|
• measuring input |
= supply voltage 3(N)~ 400/230 V |
|
• overload capacity |
determined by tolerance specified for supply voltage |
|
• asymmetry |
5…25% |
|
Input circuit |
|
|
Rated voltage U |
3(N)~ 400/230 V |
|
Rated power consumption |
8,0 VA / 0,8 W |
|
Rated frequency |
AC: 48...63 Hz |
|
Output circuit |
|
|
Number and type of contacts |
1 C/O - changeover |
|
Rated load AC1 |
5 A / 250 V AC |
|
Max. breaking capacity AC1 |
1 250 VA |
|
Insulation |
|
|
Rated surge voltage |
4 000 V AC |
|
Overvoltage category |
III PN-EN 60664-1 |
|
Insulation pollution degree |
2, if built-in 3 PN-EN 60664-1 |
Products
 |

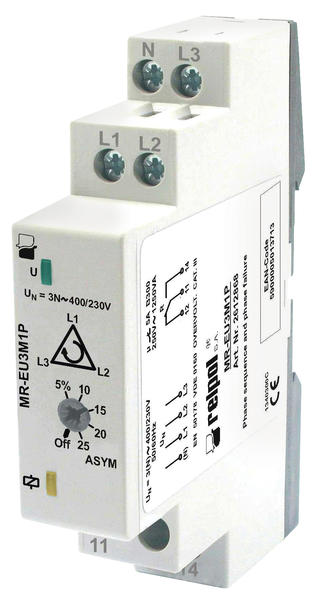

MR-EU3M1P
Monitoring relay, Contacts:1C/O, Voltage monitoring in 3-phase mains
