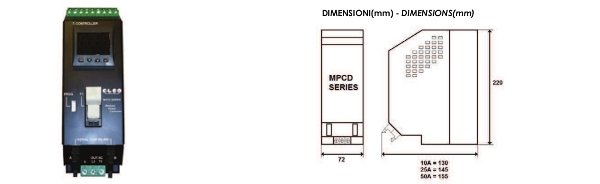

MODULAR POWER CONTROLLERS MPCD SERIES

MODULAR POWER CONTROLLERS MPCD SERIES

- Integrated user interface
- Power supply 24V AC / DC or 100 ... 240V AC
- Programmable universal input for temperature control
- Digital input enable modular power controller
- Possibility to set the terminal 4 as: digital input or logic output 0 ... 12V or power supply for transmitter
- PID control or ON / OFF programmable
- Possibility to set one alarm output for no load or load in short (LbA-Loop break alarm)
- Integrated fuse for output protection ( Not for models of 50A)
- Serial port RS485 with MODBUS-RTU communication protocol
- Possibility configuration of parameters by programming key or by PC with dedicated software
- Din rail mounting
- Output current 10A,25A,50A
- Output Voltage from 48 to 450V AC

 Technical data (PDF Format)

 Models
 MPCD-10450A - MPCD-10450C
 MPCD-25450A - MPCD-25450C
 MPCD-50450A - MPCD-50450C
