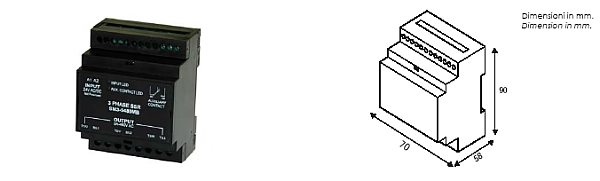

| SM3 SERIES 3 PHASE SOLID STATE RELAYS |
 |
|
- Rated operational current up to 5A (3 phases) - Commutation zero crossing or istantaneus - Output voltage from 20 to 510 VAC - Peak voltage up to 1200V - 7500V input-output insulation - Built-in varistor protection - Input voltage led - Auxiliary contact signalling led - Not polarized input - Auxiliary mechanical - Drawbar for Din bar |
| Technical data (PDF Format) |
| Models |
|
SM31-5480B SM30-5480B SM31-5480BM SM30-5480BM SM31-5480C SM30-5480C SM31-5480CM SM30-5480CM |
