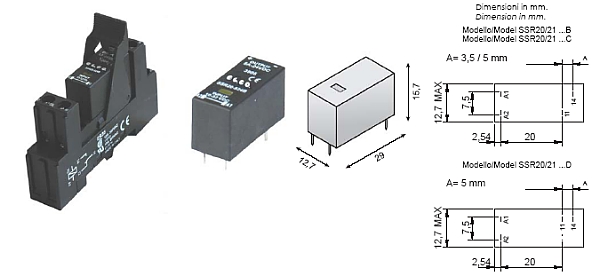

| SSR 20/21 SERIES SOLID STATE RELAYS |
 |
|
- Pin to Pin compatible with electromechanical relays - Led input voltage - Non polarized input - Rated operational current up to 5A DC or 3A AC - Zero crossing commutation for models with AC voltage output or instantaneous for DC voltage output models - Output voltage from 12 to 275 VAC or from 0 to 35V DC - 2500V input-output insulation - RC filter protection for AC models |
| Technical data (PDF Format) |
| Models |
|
SSR21-3240B5 SSR21-3240C5 SSR21-3240D5 SSR21-3240B SSR21-3240C SSR21-3240D SSR20-524B5 SSR20-524C5 SSR20-524D5 SSR20-524B SSR20-524C SSR20-524D |
