SSR08...I SERIES PHASE ANGLE CONTROL RELAYS

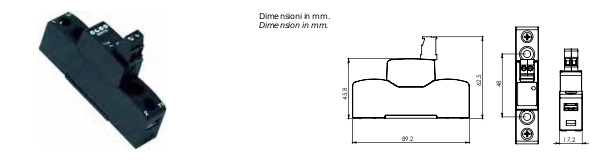

SSR170 Series SCR Solid State Relays

- Compact size: 17.5 mm width
- Input voltage led
- Input voltage: 3-32 Vdc /4-32 Vdc, 45-240 Vac
- Low control current
- Rated operational current : 25/50 A
- Zero crossing commutatio n
- Output voltage up to 600 Vac
- Peak voltage up to 1200 V
- 5000 V input-output insulation
- Integrated voltage transient protection with varistor
- RoHS compliant



 Models
SSR170-25240AS SSR170-25240CS SSR170-25600AS SSR170-25600CS
SSR170-50240AS SSR170-50240CS SSR170-50600AS SSR170-50600CS
