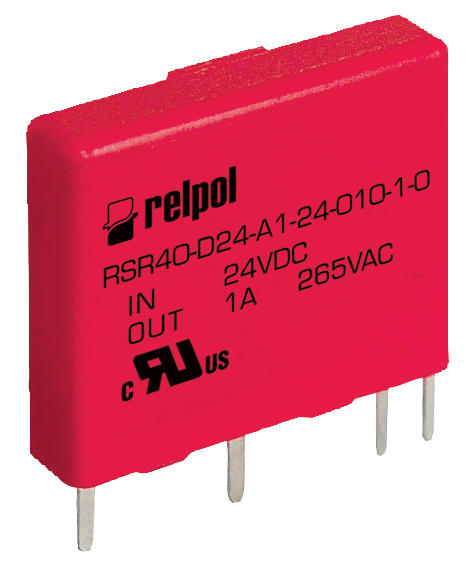

Solid State Relays PCB mounting RSR40
Ultra slim and light weight, SIL terminals type for high density mounting. Low on-state resistance. RC networks (V AC). MOSFET output thyristor (V DC).
• Applications: temperature control system, industrial automatic control,light system, office appliances, factory appliances
• Mounting: relays RSR40 are designed for direct PCB mounting,single in line package
|
Output circuit |
|
|
Max. load current: |
4 A DC |
|
1 A AC |
|
|
Nominal load voltage: |
rest condition: 24 V DC |
|
rest condition: 240 V AC |
|
|
Load voltage range: |
0…30 V DC |
|
24…265 V AC |
|
Products
 |
RSR40-D05-A1-24-010-1-0
Solid State Relay, 1-poles for PCB, Rated load: 1A/230VAC, Input: 3...10 V DC
 |
RSR40-D05-D1-02-040-1-N
Solid State Relay, 1-poles for PCB, Rated load: 1A/24VDC, Input: 3...10 V DC
 |
RSR40-D05-D1-02-040-1-P
Solid State Relay, 1-poles for PCB, Rated load: 1A/24VDC, Input: 3...10 V DC
 |
RSR40-D12-A1-24-010-1-0
Solid State Relay, 1-poles for PCB, Rated load: 1A/230VAC, Input: 7...20 V DC
 |
RSR40-D12-D1-02-040-1-N
Solid State Relay, 1-poles for PCB, Rated load: 1A/24VDC, Input: 7...20 V DC
 |
RSR40-D12-D1-02-040-1-P
Solid State Relay, 1-poles for PCB, Rated load: 1A/24VDC, Input: 7...20 V DC
 |
RSR40-D24-A1-24-010-1-0
Solid State Relay, 1-poles for PCB, Rated load: 1A/230VAC, Input: 18...32 V DC
 |
RSR40-D24-D1-02-040-1-N
Solid State Relay, 1-poles for PCB, Rated load: 1A/24VDC, Input: 18...32 V DC
 |
RSR40-D24-D1-02-040-1-P
Solid State Relay, 1-poles for PCB, Rated load: 1A/24VDC, Input: 18...32 V DC
