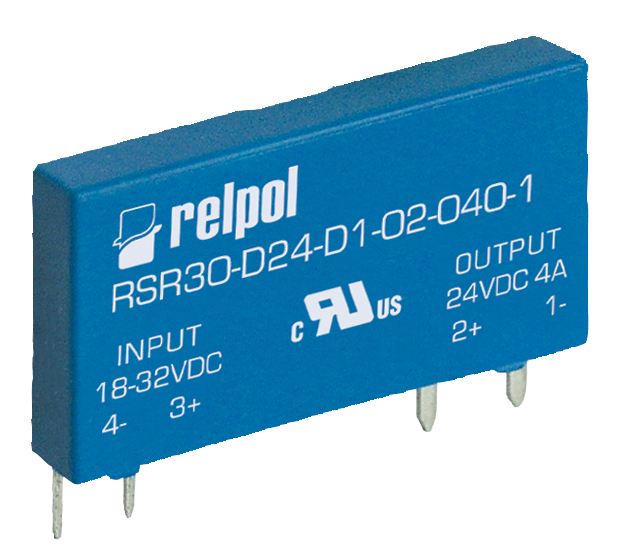

Solid State Relays PCB mounting RSR30
Low on-state resistance. RC networks (V AC). MOSFET output thyristor (V DC).
Low on-state resistance. RC networks (V AC). MOSFET output thyristor (V DC).
• Applications: household appliances, temperature control system,industrial automatic control, light system, office appliances,factory appliances
• Mounting: relays RSR30 are designed for direct PCB mounting,single in line package
|
Output circuit |
|
|
Max. load current: |
1 A DC |
|
2,5 A DC |
|
|
4 A DC |
|
|
2 A AC |
|
|
|
|
|
Nominal load voltage: |
rest condition: 24 V DC |
|
rest condition: 100 V DC |
|
|
rest condition: 480V DC |
|
|
rest condition: 240 V AC |
|
|
|
|
|
Load voltage range: |
0…32 V DC |
|
0…60 V DC |
|
|
0…180 V DC |
|
|
12…280 V AC |
|
Products
 |
RSR30-D05-A1-24-020-1
Solid State Relay, 1-poles for PCB, Rated load: 2A/230VAC, Input: 3...10 V DC
 |
RSR30-D05-D1-02-040-1
Solid State Relay, 1-poles for PCB, Rated load: 4A/24VDC, Input: 3...10 V DC
 |
RSR30-D05-D1-04-025-1
Solid State Relay, 1-poles for PCB, Rated load: 2,5A/48VDC, Input: 3...10 V DC
 |
RSR30-D05-D1-24-010-1
Solid State Relay, 1-poles for PCB, Rated load: 1A/100VDC, Input: 3...10 V DC
 |
RSR30-D12-A1-24-020-1
Solid State Relay, 1-poles for PCB, Rated load: 2A/230VAC, Input: 7...20 V DC
 |
RSR30-D12-D1-02-040-1
Solid State Relay, 1-poles for PCB, Rated load: 4A/24VDC, Input: 7...20 V DC
 |
RSR30-D12-D1-04-025-1
Solid State Relay, 1-poles for PCB, Rated load: 2,5A/48VDC, Input: 7...20 V DC
 |
RSR30-D12-D1-24-010-1
Solid State Relay, 1-poles for PCB, Rated load: 1A/100VDC, Input: 7...20 V DC
 |
RSR30-D24-A1-24-020-1
Solid State Relay, 1-poles for PCB, Rated load: 2A/230VAC, Input: 18...32 V DC
 |
RSR30-D24-D1-02-040-1
Solid State Relay, 1-poles for PCB, Rated load: 4A/24VDC, Input: 18...32 V DC
 |
RSR30-D24-D1-04-025-1
Solid State Relay, 1-poles for PCB, Rated load: 2,5A/48VDC, Input: 18...32 V DC
 |
RSR30-D24-D1-24-010-1
Solid State Relay, 1-poles for PCB, Rated load: 1A/100VDC, Input: 18...32 V DC
 |
RSR30-D48-D1-02-040-1
Solid State Relay, 1-poles for PCB, Rated load: 4A/24VDC, Input: 38...58V DC
 |
RSR30-D48-D1-04-025-1
Solid State Relay, 1-poles for PCB, Rated load: 2,5A/48VDC, Input: 38...58V DC
 |
RSR30-D48-D1-24-010-1
Solid State Relay, 1-poles for PCB, Rated load: 1A/100VDC, Input: 38...58V DC
