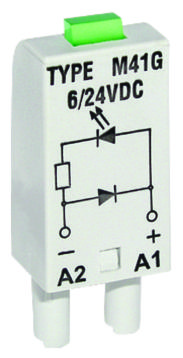

Signalling / protecting modules type M...

For sockets type: GZT80, GZM80, GZS80, GZMB80, GZT92, GZM92, GZS92, ES 32, GZT2, GZM2, GZMB2, GZT3, GZM3, GZT4, GZM4, GZMB4


Modules type M... are parallely connected with relay coil. Polarity P: -A1/+A2. Polarity N: +A1/-A2





Modules type M.. :

  • Moduł D (polarization P) - It limits overvoltage on DC coils.
  • Moduł D (polarization N) - It limits overvoltage on DC coils.
  • Moduł LD (polarization P) - It limits overvoltage on DC coils.Coil energizing indication.
  • Moduł LD (polarization N) - It limits overvoltage on DC coils.Coil energizing indication.
  • Moduł RC - It protects against EMC disturbance.It limits overvoltage.
  • Moduł L - Coil energizing indication.
  • Moduł LV - It limits overvoltage on AC and DC coils.Coil energizing indication.
  • Moduł V - It limits overvoltage on AC and DC coils.No indication.
  • Moduł R - It limits overvoltage on AC coils.
