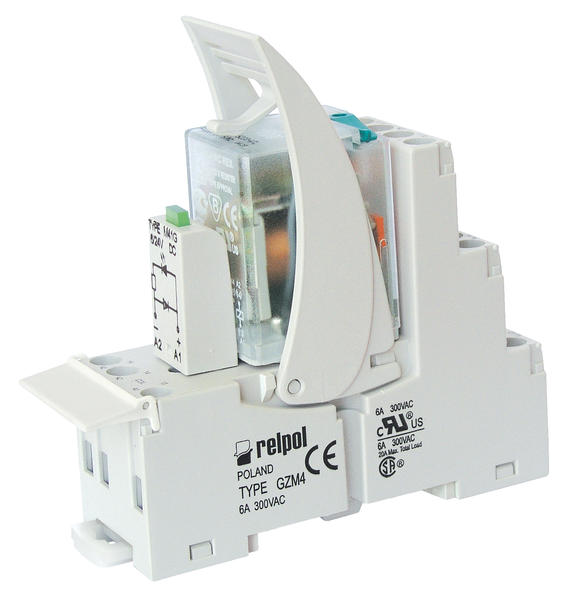

Przekaźnik PIR4
Contacts: 4CO; rated load AC1 – 6 A/250 V AC; coils AC or DC; 35 mm rail mount or on panel mounting; LED green; (set: R4, GZM4, signaling modules type M, spring wire clips)


Contact data

Number and type of contacts



4 C/O

Contact material



AgNi

Rated / max. switching voltage

AC

250 V / 440 V

Rated load (capacity)

AC1

6 A / 250 V AC

DC1

6 A / 24 V DC

Rated current



6 A

Max. breaking capacity

AC1

1 500 VA

Coil data

Rated voltage

50/60 Hz AC

12 ... 230 V

DC

12 ... 110 V

Rated power consumption

AC

50 Hz: 1,6 VA  60 Hz: 1,3 VA

DC

0,9 W

Insulation

Dielectric strength

- between coil and contacts

- contact clearance

- pole - pole



2 500 V AC



1 500 V AC



2 000 V AC

General data

Electrical life resistive

AC1

> 105   6 A, 250 V AC

Mechanical life (cycles)



> 2 x 107

Ambient temperature operating

AC

-40...+55 o

DC

-40...+70 oC
