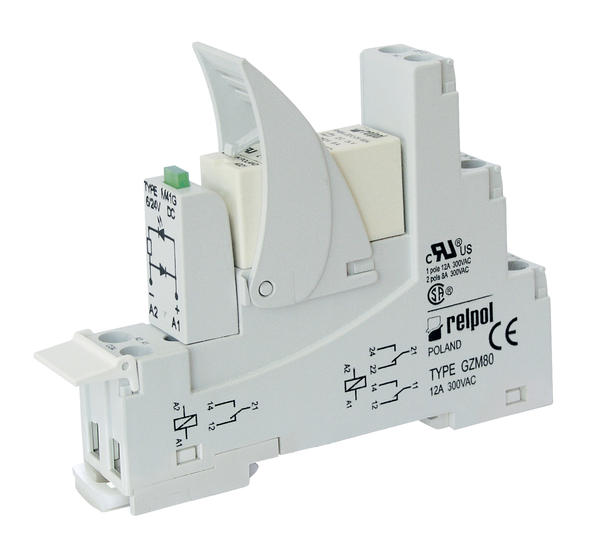

继电器接口模块PI84 with socket GZM80 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
Contacts: 2CO; rated load AC1 – 8 A/250 V AC; coils AC or DC; 35 mm rail mount or on panel mounting; LED green; (set: RM84, GZM80, signaling modules type M, spring wire clips)
|
Contact data |
||
|
Number and type of contacts |
2 C/O |
|
|
Contact material |
AgNi |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
8 A / 250 V AC |
|
DC1 |
8 A / 24 V DC |
|
|
Rated current |
8 A |
|
|
Max. breaking capacity |
AC1 |
2 000 VA |
|
Coil data |
||
|
Rated voltage |
50/60 Hz AC |
12 ... 230 V |
|
DC |
12 ... 110 V |
|
|
Rated power consumption |
AC |
0,75 VA |
|
DC |
0,4 … 0,48 W |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts - contact clearance - pole - pole |
5 000 V AC |
|
|
1 000 V AC |
||
|
2 500 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
> 105 8 A, 250 V AC |
|
Mechanical life (cycles) |
> 3 x 107 |
|
|
Ambient temperature operating |
AC |
-40...+70 oC |
|
DC |
-40...+85 oC |
|
Products
 |
PI84-012DC-00LD
Interface relay, Contacts: 2P, Supply: 12VDC, Rated load: 8A, width: 15,5mm
 |
PI84-024AC-00LV
Interface relay, Contacts: 2P, Supply: 24VAC, Rated load: 8A, width: 15,5mm
 |
PI84-024DC-00LD
Interface relay, Contacts: 2P, Supply: 24VDC, Rated load: 8A, width: 15,5mm
 |
PI84-230AC-00LV
Interface relay, Contacts: 2P, Supply: 230VAC, Rated load: 8A, width: 15,5mm
 |
PI84-012AC-00LV
Interface relay, Contacts: 2P, Supply: 12VAC, Rated load: 8A, width: 15,5mm
 |
PI84-110DC-00LD
Interface relay, Contacts: 2P, Supply: 110VDC, Rated load: 8A, width: 15,5mm
 |
PI84-120AC-00LV
Interface relay, Contacts: 2P, Supply: 120VAC, Rated load: 8A, width: 15,5mm
Accessories
ZGGZ80-1
Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS92
ZGGZ80-2
Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS93
