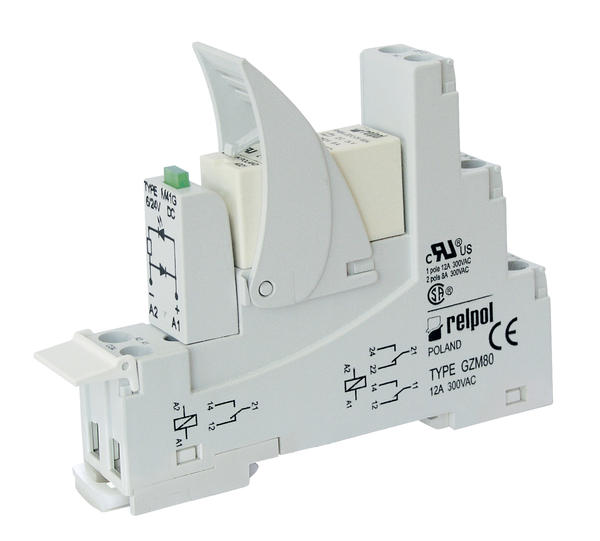

Przekaźnik PI85
Contacts: 1CO; rated load AC1 – 16 A/250 V AC; coils AC or DC; 35 mm rail mount or on panel mounting; LED green; (set: RM85, GZM80, signaling modules type M, spring wire clips)


Contact data

Number and type of contacts



1C/O

Contact material



AgNi

Rated / max. switching voltage

AC

250 V / 440 V

Rated load (capacity)

AC1

16 A / 250 V AC

DC1

16 A / 24 V DC

Rated current



16 A

Max. breaking capacity

AC1

4 000 VA

Coil data

Rated voltage

50/60 Hz AC

12 ... 230 V

DC

12 ... 110 V

Rated power consumption

AC

0,75 VA

DC

0,4 … 0,48 W

Insulation

Dielectric strength

- between coil and contacts

- contact clearance



5 000 V AC



1 000 V AC

General data

Electrical life resistive

 AC1

> 0,7 x 105  16 A, 250 V AC

Mechanical life (cycles)



> 3 x 107

Ambient temperature operating

AC

-40...+70 oC

DC

-40...+85 oC

Products

PI85-012DC-00LD

Interface relay, Contacts: 1C/O, Supply: 12VDC, Rated load: 16A, width: 15,5mm

PI85-024AC-00LV

Interface relay, Contacts: 1C/O, Supply: 24VAC, Rated load: 16A, width: 15,5mm

PI85-024DC-00LD

Interface relay, Contacts: 1C/O, Supply: 24VDC, Rated load: 16A, width: 15,5mm

PI85-230AC-00LV

Interface relay, Contacts: 1C/O, Supply: 230VAC, Rated load: 16A, width: 15,5mm

PI85-012AC-00LV

Interface relay, Contacts: 1C/O, Supply: 12VAC, Rated load: 16A, width: 15,5mm

PI85-110DC-00LD

Interface relay, Contacts: 1C/O, Supply: 110VDC, Rated load: 16A, width: 15,5mm

PI85-120AC-00LV

Interface relay, Contacts: 1C/O, Supply: 120VAC, Rated load: 16A, width: 15,5mm

Accessories

ZGGZ80-1

Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS92

ZGGZ80-2

Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS93
