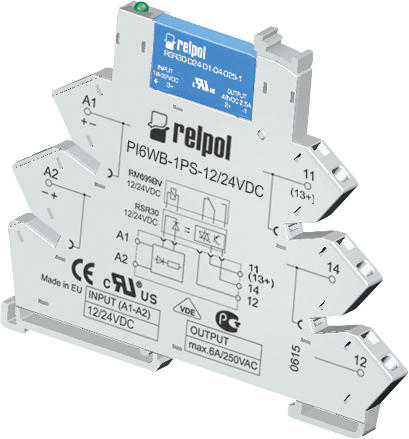

模块化中间继电器PIR6WB-1PS 订购编号:

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

Output: 1CO, triac, transistor; input voltage DC or AC/DC; width 6,2 mm; 35 mm rail mount; (set: socket PI6W-1PS + relay RM699BV or RSR30)

Change of the fixing place of 35 mm rail taps
New version - reduced power consumption - rated input voltage 230 V AC
More - folder Interface relays

Contact data
Number and type of contacts		1 C/O (R) , 1 C/O (R-01)
Contact material		AgSnO₂, AgSnO₂/Au 3 µm
Rated / max. switching voltage	AC	250 V / 400 V (AgSnO₂)
Rated load (capacity)	AC1	6 A / 250 V AC (AgSnO₂)
	DC1	6 A / 24 V DC (AgSnO₂)
Rated current		6 A (AgSnO₂)
Max. breaking capacity	AC1	1 500 VA (AgSnO₂)
Output circuit (RSR30) - output data
		Triac (T)	Transistor (C)	Transistor (O)
Rated voltage		240 V AC	48 V DC	24 V DC
Max. output voltage		280 V AC	60 V DC	32 V DC
Rated continuous output current	AC1	1A
	DC1		1A	2A
Input control circuit
Rated voltage	DC	6 ... 60 V
	AC: 50/60 Hz AC/DC	24 ... 230 V
Rated power consumption	DC	0,2...0,5 W
	AC/DC	0,5...1,2 VA / 0,4...1,2 W
Insulation according
Dielectric strength
- input - output- input - output- contact clearance		4 000 V AC
		6 000 V
		1 000 V AC
General data
Electrical life resistive	AC1	> 0,5 x 10⁵ 6 A, 250 V AC
Mechanical life (cycles)		> 10⁷
Ambient temperature operating
PIR6WB-…-R, PIR6WB-…-R01		-25...+50 ^oC - 230 V AC/DC
		-40...+55 ^oC - other voltages
PIR6WB-1P-230VAC/DC-10		-25...+50 ^oC
PIR6WB-…-T		-25...+55 ^oC
PIR6WB-…-C, PIR6WB-…-O		-25...+50 ^oC - 230 V AC/DC
		-25...+55^oC - other voltages
