模块化中间继电器PIR6W-1P 订购编号:

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

产品介绍
相关产品及附件
应用范围
标准及认证证书
技术资料

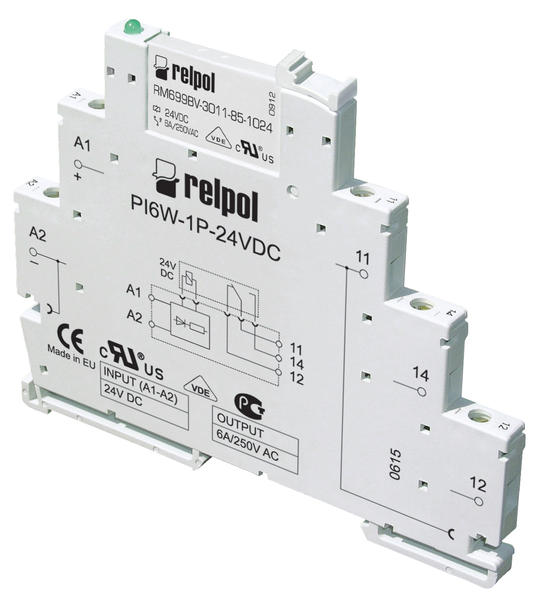

Przekaźnik PIR6W-1P

Contacts: 1CO; rated load AC1 – 6 A/250 V AC; input voltage DC or AC/DC; LED green; width 6.2 mm; 35 mm rail mount; (set: socket PI6W-1P-... + electromagnetic relay RM699BV)

Contact data
Number and type of contacts		1C/O
Contact material		AgSnO₂, AgSnO₂/Au 3 µm
Rated / max. switching voltage	AC	250 V / 400 V (AgSnO₂)
Rated load (capacity)	AC1	6 A / 250 V AC (AgSnO₂)
Rated load (capacity)	DC1	6 A / 24 V DC (AgSnO₂)
Rated current		6 A (AgSnO₂)
Max. breaking capacity	AC1	1 500 VA (AgSnO₂)
Input control circuit
Rated voltage	DC	12 ... 36 V
Rated voltage	AC_{: 50/60 Hz AC/DC}	24 ... 230 V
Rated power consumption	DC	0,3 W
Rated power consumption	AC/DC	0,3...2,1 VA / 0,3...1,0 W
Insulation
Dielectric strength
- input - output - mass - input, output - contact clearance		4 000 V AC 50/60 Hz, 1 min.
		2 500 V AC 50/60 Hz, 1 min.
		1 000 V AC 50/60 Hz, 1 min.
General data
Electrical life resistive	AC1	> 0,6 x 10⁵ _{6 A, 250 V AC, 360 cycles/hour}
Mechanical life (cycles)		> 2 x 10⁷
Ambient temperature operating	Input control circuit
	12, 24 V DC	-40...+60 ^oC
	230 V AC/DC	-40...+50 ^oC
	other voltages	-40...+55 ^oC

Products

PIR6W-1P-12VDC (CE)

Interface relay, Output:1C/O, Supply: 12VDC, Rated load: 6A, width: 6,2mm

PIR6W-1P-230VAC/DC (CE)

Interface relay, Output:1C/O, Supply: 230VAC/DC, Rated load: 6A, width: 6,2mm

PIR6W-1P-24VAC/DC (CE)

Interface relay, Output:1C/O, Supply: 24VAC/DC, Rated load: 6A, width: 6,2mm

PIR6W-1P-24VDC (CE)

Interface relay, Output:1C/O, Supply: 24VDC, Rated load: 6A, width: 6,2mm

PIR6W-1P-115VAC/DC (CE)

Interface relay, Output:1C/O, Supply: 115VAC/DC, Rated load: 6A, width: 6,2mm

PIR6W-1P-115VAC/DC-01 (CE)

Interface relay, Output:1C/O(gold), Supply: 115VAC/DC, Rated load: 6A, width:6,2mm

PIR6W-1P-12VDC-01 (CE)

Interface relay, Output:1C/O(gold), Supply: 12VDC, Rated load: 6A, width:6,2mm

PIR6W-1P-230VAC/DC-01 (CE)

Interface relay, Output:1C/O(gold), Supply: 230VAC/DC, Rated load: 6A, width:6,2mm

PIR6W-1P-24VAC/DC-01 (CE)

Interface relay, Output:1C/O(gold), Supply: 24VAC/DC, Rated load: 6A, width:6,2mm

PIR6W-1P-24VDC-01 (CE)

Interface relay, Output:1C/O(gold), Supply: 24VDC, Rated load: 6A, width:6,2mm

PIR6W-1P-36VDC (CE)

Interface relay, Output:1C/O, Supply: 36VDC, Rated load: 6A, width: 6,2mm

PIR6W-1P-36VDC-01 (CE)

Interface relay, Output:1C/O(gold), Supply: 36VDC, Rated load: 6A, width:6,2mm

PIR6W-1P-42VAC/DC (CE)

Interface relay, Output:1C/O, Supply: 42VAC/DC, Rated load: 6A, width: 6,2mm

PIR6W-1P-42VAC/DC-01 (CE)

Interface relay, Output:1C/O(gold), Supply: 42VAC/DC, Rated load: 6A, width:6,2mm

Accessories

ZG20-1

Interconnection strips 20-bridges for PI6, PIR6W, PIR6WB, PIR6WT, PIR6WBT - red

ZG20-2

Interconnection strips 20-bridges for PI6, PIR6W, PIR6WB, PIR6WT, PIR6WBT - black

ZG20-3

Interconnection strips 20-bridges for PI6, PIR6W, PIR6WB, PIR6WT, PIR6WBT - blue
