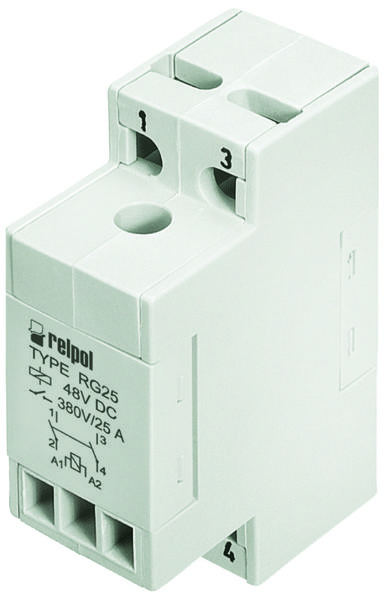

Contacts: 2 NO; rated load AC1 - 25 A/400 V AC; coils AC or DC; high insulation dielectric strength; 35 mm rail mount
|
Contact data |
||
|
Number and type of contacts |
2 NO |
|
|
Contact material |
AgCdO |
|
|
Rated / max. switching voltage |
AC |
400 V / 440 V AC |
|
Rated load (capacity) |
AC1 |
25 A / 400 V AC |
|
DC |
25 A / 24 V DC |
|
|
Rated current |
25 A |
|
|
Max. breaking capacity |
AC1 |
10 000 VA |
|
Coil data |
||
|
Rated voltage |
50 Hz AC |
12 ... 400 V |
|
DC |
12 ... 220 V |
|
|
Rated power consumption |
AC |
3,0 VA |
|
DC |
1,7 W |
|
|
Insulation according |
||
|
Dielectric strength |
||
|
between coil and contacts contact clearance pole - pole |
5 000 V AC |
|
|
1 500 V AC |
||
|
5 000 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
≥ 105 25 A, 400 V AC |
|
Mechanical life (cycles) |
≥ 106 |
|
|
Ambient temperature operating |
-25...+85 oC |
|
Products
 |
RG25-1022-28-1012
Industrial relay, 2 N/O contacts, Coil: 12VDC, Rated load: 25A, Installation housing
 |
RG25-1022-28-1024
Industrial relay, 2 N/O contacts, Coil: 24VDC, Rated load: 25A, Installation housing
 |
RG25-1022-28-3024
Industrial relay, 2 N/O contacts, Coil: 24VAC, Rated load: 25A, Installation housing
 |
RG25-1022-28-3230
Industrial relay, 2 N/O contacts, Coil: 230VAC, Rated load: 25A, Installation housing
 |
RG25-1022-28-1110
Industrial relay, 2 N/O contacts, Coil: 110VDC, Rated load: 25A, Installation housing
 |
RG25-1022-28-1220
Industrial relay, 2 N/O contacts, Coil: 220VDC, Rated load: 25A, Installation housing
 |
RG25-1022-28-3012
Industrial relay, 2 N/O contacts, Coil: 12VAC, Rated load: 25A, Installation housing
 |
RG25-1022-28-3380
Industrial relay, 2 N/O contacts, Coil: 380VAC, Rated load: 25A, Installation housing
 |
RG25-1022-28-3400
Industrial relay, 2 N/O contacts, Coil: 400VAC, Rated load: 25A, Installation housing
