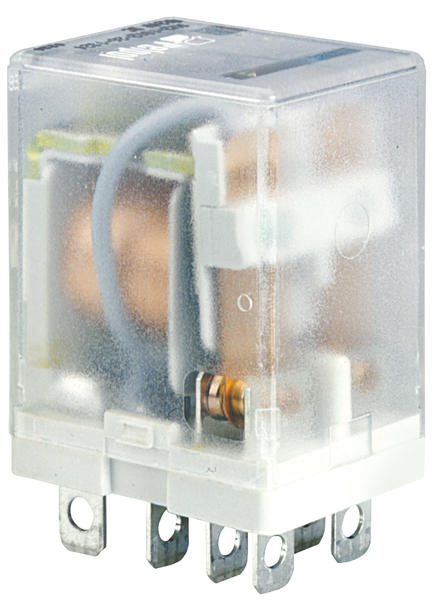

Contacts: 2 CO; rated load AC1 - 12 A/250 V AC; coils AC or DC; for flat insert connectors and plug-in sockets; light indicator LED (option); diode D (option)
|
Contact data |
||
|
Number and type of contacts |
2 C/O |
|
|
Contact material |
AgNi, AgCdO |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
12 A / 250 V AC |
|
DC1 |
12 A / 30 V DC |
|
|
Rated current |
12 A |
|
|
Max. breaking capacity |
AC1 |
3 000 VA |
|
Coil data |
||
|
Rated voltage |
50/60 Hz AC |
6 ... 240 V |
|
DC |
5 ... 220 V |
|
|
Rated power consumption |
AC |
1,6 VA |
|
DC |
0,9 W |
|
|
Insulation according |
||
|
Dielectric strength |
||
|
between coil and contacts contact clearance pole - pole |
2 500 V AC |
|
|
1 000 V AC |
||
|
2 500 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
≥ 105 12 A, 250 V AC |
|
Mechanical life (cycles) |
≥ 107 |
|
|
Ambient temperature operating |
-40...+55 oC |
|
|
Sockets |
GZY2 |
|
|
Accessories for sockets |
Spring wire clips |
|
Products
 |
RY2-1012-26-1012
Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 12A
 |
RY2-1012-26-1024
Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 12A
 |
RY2-1012-26-1110
Industrial relay, 2 C/O contacts, Coil: 110VDC, Rated load: 12A
 |
RY2-1012-26-1220
Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load: 12A
 |
RY2-1012-26-5012
Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 12A
 |
RY2-1012-26-5024
Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 12A
 |
RY2-1012-26-5230
Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 12A
Sockets
 |
GZY2G
Plug-in socket for RY2
Clips
 |
GZY 2000
Spring clamp, for socket GZY2 and relay RY2
