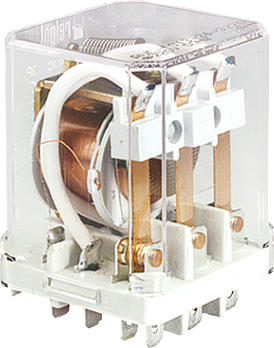

Contacts: 2 CO, 3 CO, 2 NO, 3 NO or 2 NO, 3 NO (with contact gap 3 mm); rated load AC1 – 16 A/250 V AC or 10 A/400 V AC; coils AC or DC; indicator LED (option); test button (option)
|
Contact data |
||
|
Number and type of contacts |
2 C/O, 2 NO, 2 NO |
|
|
3 C/O, 3 NO, 3 NO with contact gap ≥ 3 mm |
||
|
Contact material |
AgCdO, AgNi |
|
|
Rated / max. switching voltage |
AC |
400 V / 440 V or 230 V / 250 V |
|
Rated load (capacity) |
AC1 |
16 A / 250 V AC or 10 A / 400 V AC |
|
DC1 |
16 A / 24 V DC |
|
|
Rated current |
16 A |
|
|
Max. breaking capacity |
AC1 |
4 000 VA |
|
Coil data |
||
|
Rated voltage |
AC |
6 ... 240 V 50/60 Hz 400 V 50 Hz |
|
DC |
6 ... 220 V |
|
|
Rated power consumption |
AC |
2,8 VA 50 Hz 2,5 VA 60 Hz |
|
DC |
1,5 W 1,7 W with contact gap ≥ 3 mm |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts - contact clearance - pole - pole |
2 500 V AC |
|
|
1 500 V AC ; 2 500 V AC |
||
|
2 500 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
≥105 16 A, 250 V AC |
|
≥105 10 A, 400 V AC |
||
|
Mechanical life (cycles) |
≥107 |
|
|
Ambient temperature operating |
AC |
-40...+55 oC 3 C/O, 3 NO / 16 A |
|
(+70 oC 2 C/O, 2 NO / 16 A) |
||
|
DC |
-40...+55 oC 3 C/O, 3 NO / 16 A |
|
|
(+70 oC 3 C/O, 3 NO / 10 A; 2 C/O, 2 NO / 16 A) |
||
|
Sockets |
GUC11 |
|
|
Accessories for sockets |
Spring wire clips |
|
Products
 |
RUC-1012-26-1012
Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 16A
 |
RUC-1012-26-1024
Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 16A
 |
RUC-1012-26-1220
Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load: 16A
 |
RUC-1012-26-5024
Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 16A
 |
RUC-1012-26-5230
Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 16A
 |
RUC-1013-26-1012
Industrial relay, 3 C/O contacts, Coil: 12VDC, Rated load: 16A
 |
RUC-1013-26-1024
Industrial relay, 3 C/O contacts, Coil: 24VDC, Rated load: 16A
 |
RUC-1013-26-5024
Industrial relay, 3 C/O contacts, Coil: 24VAC, Rated load: 16A
 |
RUC-1013-26-5230
Industrial relay, 3 C/O contacts, Coil: 230VAC, Rated load: 16A
 |
RUC-1022-26-1012
Industrial relay, 2 N/O contacts, Coil: 12VDC, Rated load: 16A
 |
RUC-1022-26-1024
Industrial relay, 2 N/O contacts, Coil: 24VDC, Rated load: 16A
 |
RUC-1022-26-5024
Industrial relay, 2 N/O contacts, Coil: 24VAC, Rated load: 16A
 |
RUC-1022-26-5230
Industrial relay, 2 N/O contacts, Coil: 230VAC, Rated load: 16A
 |
RUC-1023-26-1012
Industrial relay, 3 N/O contacts, Coil: 12VDC, Rated load: 16A
 |
RUC-1023-26-1024
Industrial relay, 3 N/O contacts, Coil: 24VDC, Rated load: 16A
 |
RUC-1023-26-5024
Industrial relay, 3 N/O contacts, Coil: 24VAC, Rated load: 16A
 |
RUC-1023-26-5230
Industrial relay, 3 N/O contacts, Coil: 230VAC, Rated load: 16A
 |
RUC-1012-4A-5230
Industrial relay, 2 N/O contacts, Coil: 230VAC, Rated load: 16A for flat insert connectors - f...
 |
RUC-1012-26-1048
Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 16A
 |
RUC-1012-26-1110
Industrial relay, 2 C/O contacts, Coil: 110VDC, Rated load: 16A
 |
RUC-1012-26-3024
Industrial relay, 2 C/O contacts, Coil: 24VAC (50Hz), Rated load: 16A
 |
RUC-1012-26-3120
Industrial relay, 2 C/O contacts, Coil: 120VAC (50Hz), Rated load: 16A
 |
RUC-1012-26-3230
Industrial relay, 2 C/O contacts, Coil: 230VAC (50Hz), Rated load: 16A
 |
RUC-1012-26-3380
Industrial relay, 2 C/O contacts, Coil: 380VAC (50Hz), Rated load: 16A
 |
RUC-1012-26-3400
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Wyjście: 2P...
 |
RUC-1012-26-5012
Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 16A
 |
RUC-1012-26-5110
Industrial relay, 2 C/O contacts, Coil: 110VAC, Rated load: 16A
 |
RUC-1012-26-5120
Industrial relay, 2 C/O contacts, Coil: 120VAC, Rated load: 16A
 |
RUC-1012-26-5240
Industrial relay, 2 C/O contacts, Coil: 240VAC, Rated load: 16A
 |
RUC-1012-HA-1024
Industrial relay, 3 C/O contacts, Coil: 24VDC, Rated load: 16A, vertical adaptor
 |
RUC-1012-HA-5024
Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 16A, horizontal adaptor
 |
RUC-1012-HA-5230
Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 16A, horizontal adaptor
 |
RUC-1012-VA-1024
Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 16A, vertical adaptor
 |
RUC-1012-VA-5024
Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 16A, vertical adaptor
 |
RUC-1012-VA-5230
Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 16A, vertical adaptor
 |
RUC-1013-14A-1024
Industrial relay, 3 N/O contacts, Coil: 24VDC, Rated load: 16A for flat insert connectors - fa...
 |
RUC-1013-4A-5024
Industrial relay, 3 N/O contacts, Coil: 24VAC, Rated load: 16A for flat insert connectors - fa...
 |
RUC-1013-4A-5230
Industrial relay, 3 N/O contacts, Coil: 230VAC, Rated load: 16A for flat insert connectors - f...
 |
RUC-1013-26-1048
Industrial relay, 3 C/O contacts, Coil: 48VDC, Rated load: 16A
 |
RUC-1013-26-1060
Industrial relay, 3 C/O contacts, Coil: 60VDC, Rated load: 16A
 |
RUC-1013-26-1110
Industrial relay, 3 C/O contacts, Coil: 110VDC, Rated load: 16A
 |
RUC-1013-26-1220
Industrial relay, 3 C/O contacts, Coil: 220VDC, Rated load: 16A
 |
RUC-1013-26-3012
Industrial relay, 2 C/O contacts, Coil: 12VAC (50Hz), Rated load: 16A
 |
RUC-1013-26-3024
Industrial relay, 2 C/O contacts, Coil: 24VAC (50Hz), Rated load: 16A
 |
RUC-1013-26-3110
Industrial relay, 2 C/O contacts, Coil: 110VAC (50Hz), Rated load: 16A
 |
RUC-1013-26-3120
Industrial relay, 2 C/O contacts, Coil: 120VAC (50Hz), Rated load: 16A
 |
RUC-1013-26-3230
Industrial relay, 2 C/O contacts, Coil: 230VAC (50Hz), Rated load: 16A
 |
RUC-1013-26-3240
Industrial relay, 2 C/O contacts, Coil: 240VAC (50Hz), Rated load: 16A
 |
RUC-1013-26-3380
Industrial relay, 2 C/O contacts, Coil: 380VAC (50Hz), Rated load: 16A
 |
RUC-1013-26-3400
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Wyjście: 3P...
 |
RUC-1013-26-5012
Industrial relay, 3 C/O contacts, Coil: 12VAC, Rated load: 16A
 |
RUC-1013-26-5110
Industrial relay, 3 C/O contacts, Coil: 110VAC, Rated load: 16A
 |
RUC-1013-26-5120
Industrial relay, 3 C/O contacts, Coil: 120VAC, Rated load: 16A
 |
RUC-1013-26-5240
Industrial relay, 3 C/O contacts, Coil: 240VAC, Rated load: 16A
 |
RUC-1013-HA-1024
Industrial relay, 3 C/O contacts, Coil: 24VDC, Rated load: 16A, horizontal adaptor
 |
RUC-1013-HA-5024
Industrial relay, 3 C/O contacts, Coil: 24VAC, Rated load: 16A, horizontal adaptor
 |
RUC-1013-HA-5120
Industrial relay, 3 C/O contacts, Coil: 120VDC, Rated load: 16A, horizontal adaptor
 |
RUC-1013-HA-5230
Industrial relay, 3 C/O contacts, Coil: 230VAC, Rated load: 16A, horizontal adaptor
 |
RUC-1013-VA-1024
Industrial relay, 3 C/O contacts, Coil: 24VDC, Rated load: 16A, vertical adaptor
 |
RUC-1013-VA-5024
Industrial relay, 3 C/O contacts, Coil: 24VAC, Rated load: 16A, vertical adaptor
 |
RUC-1013-VA-5120
Industrial relay, 3 C/O contacts, Coil: 120VAC, Rated load: 16A, vertical adaptor
 |
RUC-1013-VA-5230
Industrial relay, 3 C/O contacts, Coil: 230VAC, Rated load: 16A, vertical adaptor
 |
RUC-1022-26-1048
Industrial relay, 2 N/O contacts, Coil: 48VDC, Rated load: 16A
 |
RUC-1022-26-1060
Industrial relay, 2 N/O contacts, Coil: 60VDC, Rated load: 16A
 |
RUC-1022-26-1110
Industrial relay, 2 N/O contacts, Coil: 110VDC, Rated load: 16A
 |
RUC-1022-26-1220
Industrial relay, 2 N/O contacts, Coil: 220VDC, Rated load: 16A
 |
RUC-1022-26-3012
Industrial relay, 2 N/O contacts, Coil: 12VAC (50Hz), Rated load: 16A
 |
RUC-1022-26-3220
Industrial relay, 2 N/O contacts, Coil: 220VAC (50Hz), Rated load: 16A
 |
RUC-1022-26-3380
Industrial relay, 2 N/O contacts, Coil: 380VAC (50Hz), Rated load: 16A
 |
RUC-1022-26-3400
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Wyjście: 2Z...
 |
RUC-1022-26-5012
Industrial relay, 2 N/O contacts, Coil: 12VAC, Rated load: 16A
 |
RUC-1022-26-5110
Industrial relay, 2 N/O contacts, Coil: 110VAC, Rated load: 16A
 |
RUC-1022-26-5120
Industrial relay, 2 N/O contacts, Coil: 120VAC, Rated load: 16A
 |
RUC-1022-26-5240
Industrial relay, 2 N/O contacts, Coil: 240VAC, Rated load: 16A
 |
RUC-1023-26-1220
Industrial relay, 3 N/O contacts, Coil: 220VDC, Rated load: 16A
 |
RUC-1023-26-3024
Industrial relay, 3 N/O contacts, Coil: 24VAC (50Hz), Rated load: 16A
 |
RUC-1023-26-3230
Industrial relay, 3 N/O contacts, Coil: 230VAC (50Hz), Rated load: 16A
 |
RUC-1023-26-3380
Industrial relay, 3 N/O contacts, Coil: 380VAC (50Hz), Rated load: 16A
 |
RUC-1023-26-3400
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, do gniazda wtykowego. Wyjście: 3Z...
 |
RUC-1023-26-5012
Industrial relay, 3 N/O contacts, Coil: 12VAC, Rated load: 16A
 |
RUC-1023-26-5115
Industrial relay, 3 N/O contacts, Coil: 115VAC, Rated load: 16A
 |
RUC-1023-26-5120
Industrial relay, 3 N/O contacts, Coil: 120VAC, Rated load: 16A
 |
RUC-1023-26-5240
Industrial relay, 3 N/O contacts, Coil: 240VAC, Rated load: 16A
 |
RUC-1052-4A-5024
Industrial relay, 2 N/O, contact gap ≥ 3 mm, Coil: 24VAC, Rated load: 16A for flat insert conn...
 |
RUC-1052-4A-5230
Industrial relay, 2 N/O, contact gap ≥ 3 mm, Coil: 230VAC, Rated load: 16A for flat insert con...
 |
RUC-1052-4A-W024
Industrial relay, 2 N/O, contact gap ≥ 3 mm, Coil: 24VDC reinforced, Rated load: 16A for flat...
 |
RUC-1053-4A-5024
Industrial relay, 3 N/O, contact gap ≥ 3 mm, Coil: 24VAC, Rated load: 16A for flat insert conn...
 |
RUC-1053-4A-5230
Industrial relay, 2 N/O, contact gap ≥ 3 mm, Coil: 230VAC, Rated load: 16A for flat insert con...
 |
RUC-1053-4A-W024
Industrial relay, 3 N/O, contact gap ≥ 3 mm, Coil: 24VDC reinforced, Rated load: 16A for flat...
Sockets
 |
GUC11
Plug-in socket for RUC 2 C/O, RUC 3 C/O, width 42,2 mm,
Clips
 |
MBA
Spring clamp, for socket GUC11 and relay RUC
