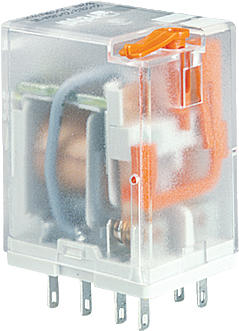

Relay R2
Contacts: 2 CO; rated load AC1 - 12 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button
|
Contact data |
||
|
Number and type of contacts |
2 C/O |
|
|
Contact material |
AgNi, AgNi/Au 0,2 µm |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
12 A / 250 V AC; 10 A / 250 V AC |
|
DC1 |
12 A / 24 V DC 10 A / 24 V AC |
|
|
Rated current |
12 A; 10 A |
|
|
Max. breaking capacity |
AC1 |
3 000 VA; 2 500 VA |
|
Coil data |
||
|
Rated voltage |
AC 50/60 Hz |
6 ... 240 V |
|
DC |
5 ... 220 V |
|
|
Rated power consumption |
AC |
1,6 VA |
|
DC |
0,9 W |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts |
2 500 V AC |
|
|
- contact clearance |
1 500 V AC |
|
|
- pole - pole |
2 500 V AC |
|
|
General data |
||
|
Electrical life resistive |
AC1 |
≥ 105 12 A, 250 V AC |
|
Mechanical life (cycles) |
≥ 2 x 107 |
|
|
Ambient temperature operating |
AC |
-40...+55 oC |
|
DC |
-40...+70 oC |
|
|
Sockets |
GZT2, GZM2, GZMB2, SU4/2D, SU4/2L, G4/2 |
|
|
Accessories for sockets |
Signaling / protecting modules type M |
|
Products
 |
R2S-024AC
Zestaw: 2P - dwa zestyki przełączne. Szerokość 27 mm. Bez separacji obwodów. Zaciski śrubowe....
 |
R2S-024DC
Zestaw: 2P - dwa zestyki przełączne. Szerokość 27 mm. Bez separacji obwodów. Zaciski śrubowe....
 |
R2S-230AC
Zestaw: 2P - dwa zestyki przełączne. Szerokość 27 mm. Bez separacji obwodów. Zaciski śrubowe....
 |
R2-2012-23-1012-WT
Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 12A
 |
R2-2012-23-1024-WT
Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 12A
 |
R2-2012-23-1220-WT
Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load: 12A
 |
R2-2012-23-5024-WT
Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 12A
 |
R2-2012-23-5230-WT
Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 12A
 |
R2-2012-23-1012-WTD
Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 12A, Diode
 |
R2-2012-23-1012-WTL
Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 12A, LED
 |
R2-2012-23-1012-WTLD
Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 12A, Diode+ LED
 |
R2-2012-23-1024-W
Przekaźnik elektromagnetyczny, przemysłowy - miniaturowy, do gniazda wtykowego. Szerokość 21,2...
 |
R2-2012-23-1024-WTD
Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 12A, Diode
 |
R2-2012-23-1024-WTL
Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 12A, LED
 |
R2-2012-23-1024-WTLD
Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 12A, Diode+ LED
 |
R2-2012-23-1048-WT
Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 12A
 |
R2-2012-23-1048-WTD
Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 12A, Diode
 |
R2-2012-23-1048-WTL
Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 12A, LED
 |
R2-2012-23-1048-WTLD
Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 12A, Diode+ LED
 |
R2-2012-23-1060-WT
Industrial relay, 2 C/O contacts, Coil: 60VDC, Rated load: 12A
 |
R2-2012-23-1060-WTL
Industrial relay, 2 C/O contacts, Coil: 60VDC, Rated load: 12A, LED
 |
R2-2012-23-1110-WT
Industrial relay, 2 C/O contacts, Coil: 110VDC, Rated load: 12A
 |
R2-2012-23-1110-WTD
Industrial relay, 2 C/O contacts, Coil: 110VDC, Rated load: 12A, Diode
 |
R2-2012-23-1110-WTL
Industrial relay, 2 C/O contacts, Coil: 110VDC, Rated load: 12A, LED
 |
R2-2012-23-1110-WTLD
Industrial relay, 2 C/O contacts, Coil:110VDC, Rated load: 12A, Diode+ LED
 |
R2-2012-23-1220-WTL
Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load: 12A, LED
 |
R2-2012-23-1220-WTLD
Industrial relay, 2 C/O contacts, Coil:220VDC, Rated load: 12A, Diode+ LED
 |
R2-2012-23-5012-WT
Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 12A
 |
R2-2012-23-5012-WTL
Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 12A, LED
 |
R2-2012-23-5024-W
Przekaźnik elektromagnetyczny, przemysłowy - miniaturowy, do gniazda wtykowego. Szerokość 21,2...
 |
R2-2012-23-5024-WTL
Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 12A, LED
 |
R2-2012-23-5048-WT
Industrial relay, 2 C/O contacts, Coil: 48VAC, Rated load: 12A
 |
R2-2012-23-5048-WTL
Industrial relay, 2 C/O contacts, Coil: 48VAC, Rated load: 12A, LED
 |
R2-2012-23-5115-WT
Industrial relay, 2 C/O contacts, Coil: 115VAC, Rated load: 12A
 |
R2-2012-23-5120-WT
Industrial relay, 2 C/O contacts, Coil: 120VAC, Rated load: 12A
 |
R2-2012-23-5230-W
Przekaźnik elektromagnetyczny, przemysłowy - miniaturowy, do gniazda wtykowego. Szerokość 21,2...
 |
R2-2012-23-5230-WTL
Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 12A, LED
Sockets
 |
G4/2
Plug-in socket for R2, for soldering.
 |
GZM2
Plug-in socket for R2
 |
GZT2
Plug-in socket for R2
SU4/2D
Plug-in socket for R2, for PCB.
SU4/2L
Plug-in socket for R2, for soldering.
Clips
 |
G4 1050
Spring clamp, for sockets SU4/2D, SU4/2L, G4/2, SU4D, SU4L, G4, S2M, G2M
 |
G4 1053
Spring clamp, for sockets SU4/2L, SU4/2D, G4/2, SU4L, SU4D, G4
 |
G4 1052
Spring clamp, for sockets GZM2, GZT2, GZM3, GZT3, GZM4, GZT4, GZ4
 |
GZT4-0040
Retainer clips for sockets GZM2, GZT2, GZM3, GZT3, GZM4, GZT4
Accessories
 |
G4 1040
Latch mounting slot SU4/2L, SU4L hole in the mounting plate.
ZGGZ4-1
Interconnection srips 6-pools for sockets GZT2, GZT3, GZT4, GZM2, GZM3, GZM4
ZGGZ4-2
Interconnection srips 6-pools for sockets GZT2, GZT3, GZT4, GZM2, GZM3, GZM5
 |
GZT4-0035
Description plate for sockets GZM2, GZT2, GZM3, GZT3, GZM4, GZT4
R4P-0001-A
Przycisk testujący eliminujący funkcję blokowania styków w przekaźnikach R2...WT, R3...WT, R4....
R4P-0001-D
Przycisk testujący eliminujący funkcję blokowania styków w przekaźnikach R2...WT, R3...WT, R4....
R4W-0003-A
Zaślepka eliminująca funkcję testowania i blokowania styków w przekaźnikach R2...WT, R3...WT,...
R4W-0003-D
Zaślepka eliminująca funkcję testowania i blokowania styków w przekaźnikach R2...WT, R3...WT,...
