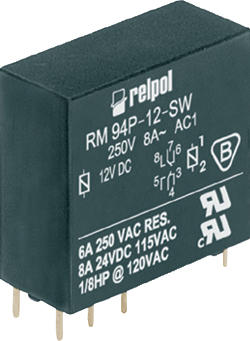

Przekaźnik RM94







Contacts: 2 CO, 2 NO, 2 NC; rated load AC1 – 8 A/250 V AC; coils DC or DC – version sensitive; for PCB and sockets


Contact data

Number and type of contacts



2 C/O, 2 NO, 2 NC

Contact material



AgCu/Au 0,2 µm, AgCdO, AgCdO/Au 3 µm

Rated / max. switching voltage

AC

250 V / 440 V

Rated load (capacity)

AC1

8 A / 250 V AC

DC1

8 A / 24 V DC

Rated current



8 A

Max. breaking capacity

AC1

2 000 VA

Coil data

Rated voltage

DC

6 ... 110 V standard version

Rated power consumption

DC

0,8 W standard version



0,5 W sensitive version

Insulation

Dielectric strength

- between coil and contacts

- contact clearance

- pole - pole



4 000 V AC



1 000 V AC



2 500 V AC

General data

Electrical life resistive

AC1

>2 x 105   8 A, 250 V AC

Mechanical life (cycles)



>3 x 107

Ambient temperature operating



-40...+70 oC

Sockets

EC50, PW80, GD50

Accessories for sockets

Spring wire clips
