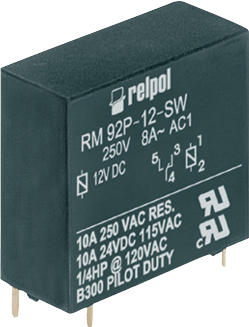

Contacts: 1 CO, 1 NO, 1 NC; rated load AC1 – 8 A/250 V AC; coils DC or DC – version sensitive; for PCB and sockets
|
Contact data |
||
|
Number and type of contacts |
1 C/O, 1 NO, 1 NC |
|
|
Contact material |
AgCu/Au 0,2 µm, AgCdO, AgCdO/Au 3 µm |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
8 A / 250 V AC |
|
DC1 |
8 A / 24 V DC |
|
|
Rated current |
8 A |
|
|
Max. breaking capacity |
AC1 |
2 000 VA |
|
Coil data |
||
|
Rated voltage |
DC |
6 ... 80 V standard version |
|
Rated power consumption |
DC |
0,8 W standard version |
|
0,5 W sensitive version |
||
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts - contact clearance |
4 000 V AC |
|
|
1 000 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
>2 x 105 8 A, 250 V AC |
|
Mechanical life (cycles) |
>3 x 107 |
|
|
Ambient temperature operating |
-40...+70 oC |
|
|
Sockets |
EC35, GD35 |
|
|
Accessories for sockets |
Spring wire clips |
|
Products
 |
RM92-1011-25-1012
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 12VDC, Rated load 8A, pitch 3,5mm
 |
RM92-1011-25-1024
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 24VDC, Rated load 8A, pitch 3,5mm
 |
RM92-1021-25-1012
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 12VDC, Rated load 8A, pitch 3,5mm
 |
RM92-1021-25-1024
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 24VDC, Rated load 8A, pitch 3,5mm
 |
RM92-1011-25-1005
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 5VDC, Rated load 8A, pitch 3,5mm
 |
RM92-1011-25-1060
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 60VDC, Rated load 8A, pitch 3,5mm
 |
RM92-1021-25-1005
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 5VDC, Rated load 8A, pitch 3,5mm
 |
RM92-1021-25-1060
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 60VDC, Rated load 8A, pitch 3,5mm
Sockets
 |
EC35
Spring Clip for GZT80, GZM80, GZS80, GZT92, GZM92, GZS92, GZ96
 |
GD35
Plug-in Socket for RM84, RM85, RM87L, RM87P, GREY
