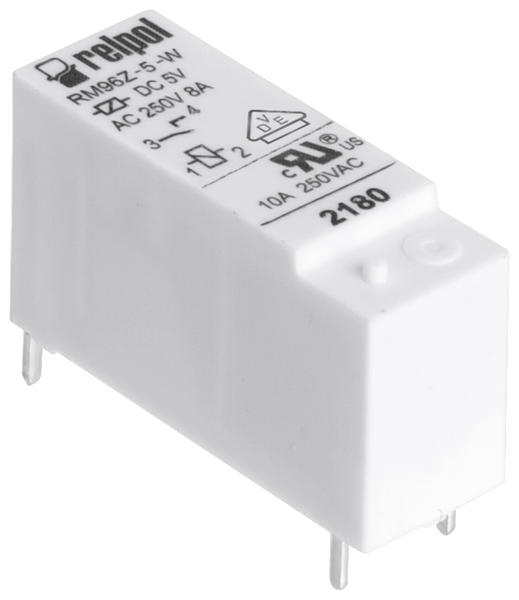

Contacts: 1CO, 1NO, 1NC; rated load AC1 – 8 A/250 V AC; coils DC; for PCB and sockets
|
Contact data |
||
|
Number and type of contacts |
1 C/O, 1 NO, 1 NC |
|
|
Contact material |
AgSnO2, AgSnO2/Au 3 µm, AgCdO |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
8 A / 250 V AC |
|
DC1 |
8 A / 24 V DC |
|
|
Rated current |
8 A |
|
|
Max. breaking capacity |
AC1 |
2 000 VA |
|
Coil data |
||
|
Rated voltage |
DC |
5 ... 48 V |
|
Rated power consumption |
DC |
0,22 ... 0,3 W |
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts- contact clearance |
4 000 V AC |
|
|
1 000 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
>105 8 A, 250 V AC |
|
Mechanical life (cycles) |
>2 x 107 |
|
|
Ambient temperature operating |
-40...+80 oC |
|
|
Sockets |
ES 32, EC32 |
|
|
Accessories for sockets |
Signaling / protecting modules type M |
|
Products
 |
RM96-1011-35-1012
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 12VDC, Rated load 8A, pitch 3,2mm
 |
RM96-1011-35-1024
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 24VDC, Rated load 8A, pitch 3,2mm
 |
RM96-1021-35-1012
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 12VDC, Rated load 8A, pitch 5mm
 |
RM96-1021-35-1024
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 24VDC, Rated load 8A, pitch 5mm
 |
RM96-1031-35-1012
Miniature relay, Contacts: 1 N/C (AgCdO), Coil: 12VDC, Rated load 8A, pitch 5mm
 |
RM96-1031-35-1024
Miniature relay, Contacts: 1 N/C (AgCdO), Coil: 24VDC, Rated load 8A, pitch 5mm
 |
RM96-1011-35-1005
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 5VDC, Rated load 8A, pitch 3,2mm
 |
RM96-1011-35-1006
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 6VDC, Rated load 8A, pitch 3,2mm
 |
RM96-1011-35-1009
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 9VDC, Rated load 8A, pitch 3,2mm
 |
RM96-1011-35-1018
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 18VDC, Rated load 8A, pitch 3,2mm
 |
RM96-1011-35-1048
Miniature relay, Contacts: 1 C/O (AgCdO), Coil: 48VDC, Rated load 8A, pitch 3,2mm
 |
RM96-1021-35-1005
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 5VDC, Rated load 8A, pitch 5mm
 |
RM96-1021-35-1006
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 6VDC, Rated load 8A, pitch 5mm
 |
RM96-1021-35-1009
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 9VDC, Rated load 8A, pitch 5mm
 |
RM96-1021-35-1018
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 18VDC, Rated load 8A, pitch 5mm
 |
RM96-1021-35-1048
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 48VDC, Rated load 8A, pitch 5mm
 |
RM96-1031-35-1005
Miniature relay, Contacts: 1 N/C, (AgCdO), Coil: 5VDC, Rated load 8A, pitch 5mm
 |
RM96-1031-35-1009
Miniature relay, Contacts: 1 N/C (AgCdO), Coil: 9VDC, Rated load 8A, pitch 5mm
 |
RM96-1031-35-1018
Miniature relay, Contacts: 1 N/C (AgCdO), Coil: 18VDC, Rated load 8A, pitch 5mm
 |
RM96-1031-35-1048
Miniature relay, Contacts: 1 N/C (AgCdO), Coil: 48VDC, Rated load 8A, pitch 5mm
Sockets
 |
GZ96
Plug-in Socket for RM87N
Clips
MS16
Plug-in Socket for RM87N
Accessories
TR
Spring Clip for EC50, PW80, EC35
