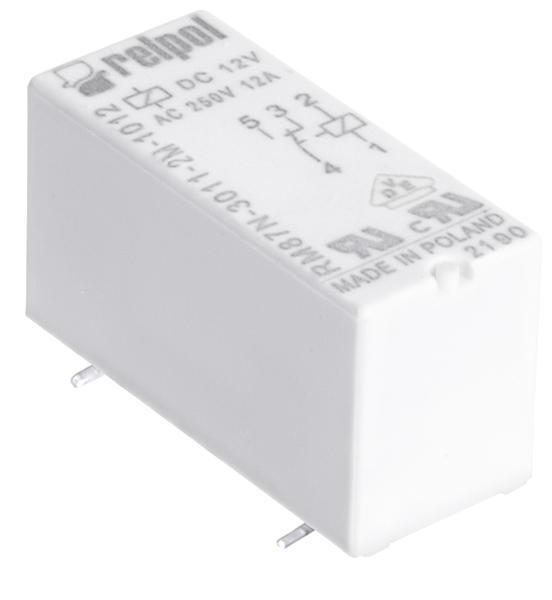

微型PCB功率继电器RM87N SMT    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

Przekaźnik RM87
Contacts 1CO, 1 NO; rated load AC1 – 12 A/250 V AC; coils AC or DC; for surface mounting SMT


Contact data

Number and type of contacts



1 CO, 1 NO

Contact material



AgNi, AgNi/Au 5 µm, AgSnO

Rated / max. switching voltage

AC

250 V / 440 V

Rated load (capacity)

AC1

12 A / 250 V AC

DC1

12 A / 24 V DC

Rated current



12 A

Max. breaking capacity

AC1

3 000 VA

Coil data

Rated voltage

AC 50/60 Hz

12 ... 250 V

DC

3 ... 110 V

Rated power consumption

AC

0,75 VA

DC

0,4 ... 0,48 W

Insulation

Dielectric strength

- between coil and contacts

- contact clearance



5 000 V AC



1 000 V AC

General data

Electrical life resistive

AC1

>105  12 A, 250 V AC

Mechanical life (cycles)



>3 x 107

Ambient temperature operating

AC

-40...+70 o

DC

-40...+85 oC
