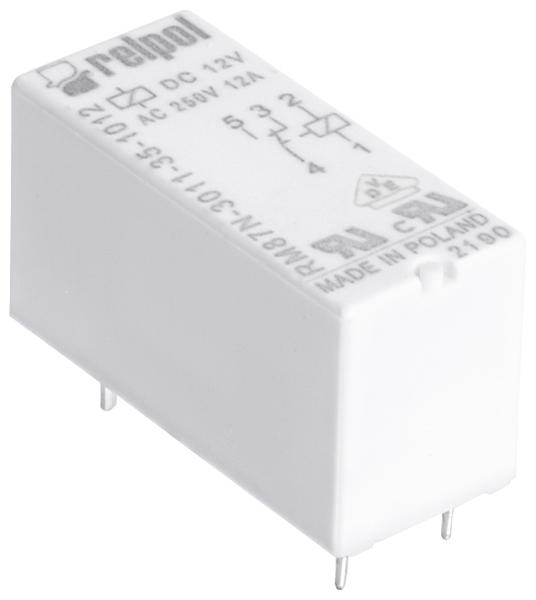

微型PCB功率继电器RM87,RM87 sensitive 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
Contacts: 1CO, 1NO; rated load AC1 – 12 A/250 V AC or 10 A/250 V AC; coils AC, DC, DC – sensitive (1 NO); for PCB and sockets
|
Contact data |
||
|
Number and type of contacts |
1 C/O, 1 NO |
|
|
Contact material |
AgNi, AgNi/Au 5 µm, AgSnO2 |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
12 A / 250 V AC standard version |
|
DC1 |
12 A / 24 V DC standard version |
|
|
Rated current |
12 A standard version |
|
|
Max. breaking capacity |
AC1 |
3 000 VA standard version |
|
Coil data |
||
|
Rated voltage |
AC 50/60 Hz |
12 ... 240 V standard version |
|
DC |
3 ... 110 V standard version |
|
|
Rated power consumption |
AC |
0,75 VA standard version |
|
DC |
0,4 ... 0,48 W standard version |
|
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts - contact clearance |
5 000 V AC |
|
|
1 000 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
>105 12 A, 250 V AC standard version |
|
>1,7 x 105 10 A, 250 V AC sensitive version |
||
|
Mechanical life (cycles) |
>3 x 107 |
|
|
Ambient temperature operating |
AC |
-40...+70 oC |
|
DC |
-40...+85 oC |
|
|
Sockets |
GZT80, GZM80, GZS80, GZMB80, EC50, PW80, GD50, GZT92, GZM92, GZS92, EC35, GD35 |
|
|
Accessories for sockets |
Signaling / protecting modules type M |
|
Products
 |
RM87N-2011-35-1012
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 12VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-1024
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 24VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-5024
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 24VAC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-5230
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 230VAC, Rated load 12A, pitch 3,5mm
 |
RM87N-2021-35-1012
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 12VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2021-35-1024
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 24VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-1005
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 5VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-1048
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 48VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-1060
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 60VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-1110
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 110VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-5012
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 12VAC, Rated load 12A, pitch 3,5mm
 |
RM87N-2011-35-5110
Miniature relay, Contacts: 1 C/O (AgNi), Coil: 110VAC, Rated load 12A, pitch 3,5mm
 |
RM87N-2021-35-1005
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 5VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2021-35-1048
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 48VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2021-35-1060
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 60VDC, Rated load 12A, pitch 3,5mm
 |
RM87N-2021-35-1110
Miniature relay, Contacts: 1 N/O (AgNi), Coil: 110VDC, Rated load 12A, pitch 3,5mm
Sockets
 |
EC35
Spring Clip for GZT80, GZM80, GZS80, GZT92, GZM92, GZS92, GZ96
 |
GD35
Plug-in Socket for RM84, RM85, RM87L, RM87P, GREY
 |
GZM92
Gniazdo wtykowe, do przekaźników RM87N, kolor czarny, szerokość 15,9 mm. Separacja obwodów - z...
 |
GZS92
PCB Plug-in Socket for RM84, RM85, RM87L, RM87P
 |
GZT92
PCB Plug-in Socket for RM84, RM85, RM87L, RM87P, BLACK
 |
PW80
Spring Clip for GD50, GD35,
 |
EC50
Spring Clip for GD50, GD35,
 |
GD50
Plug-in Socket for RM84, RM85, RM87L, RM87P, BLACK
 |
GZM80
Plug-in Socket for RM84, RM85, RM87L, RM87P, GREY
 |
GZS80
Plug-in Socket for RM84, RM85, RM87L, RM87P
 |
GZT80
Plug-in Socket for RM84, RM85, RM87L, RM87P, BLACK
Clips
 |
GZT80-0040
PCB Plug-in Socket for RM84, RM85, RM87L, RM87P, RM83 , GREY
 |
MH16-2
Plug-in Socket Retractor Clip for GZM80, GZT80, GZM92, GZT92, GREY, BLACK,
Accessories
 |
GZT80-0035
PCB Plug-in Socket for RM84, RM85, RM87L, RM87P, RM83, BLACK
ZGGZ80-1
Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS92
ZGGZ80-2
Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS93
