微型PCB功率继电器RM85 for high voltage switching    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

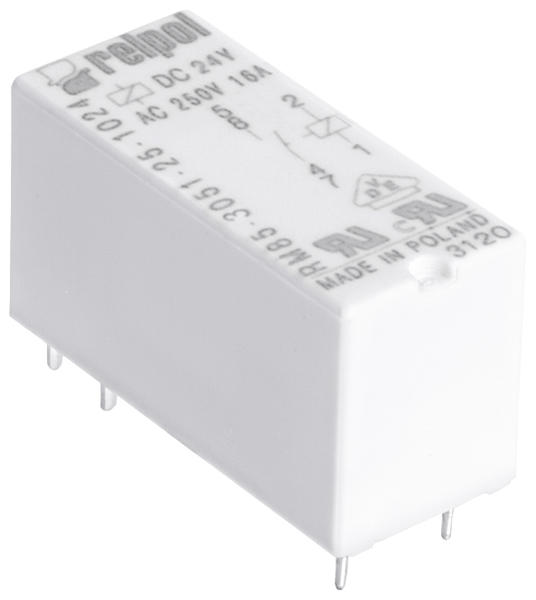

Przekaźnik RM85
Contacts: 1NO (increased contact gap); rated load AC1 – 5 A/480 V AC; coils DC; for PCB


Contact data

Number and type of contacts



1 NO

Contact material



AgSnO2

Rated / max. switching voltage

AC

250 V / 480 V

Rated load (capacity)

AC1

5 A / 480 V AC

DC1

16 A / 24 V DC

Rated current



16 A / 250 V AC

Max. breaking capacity

AC1

2 400 VA

Coil data

Rated voltage

DC

3 ... 110 V

Rated power consumption

DC

0,4 ... 0,48 W

Insulation

Dielectric strength

- between coil and contacts

- contact clearance



5 000 V AC



1 500 V AC

General data

Electrical life resistive

AC1

>4 x 10  5 A, 480 V AC

Mechanical life (cycles)



>3 x 107

Ambient temperature operating



-40...+85 oC
