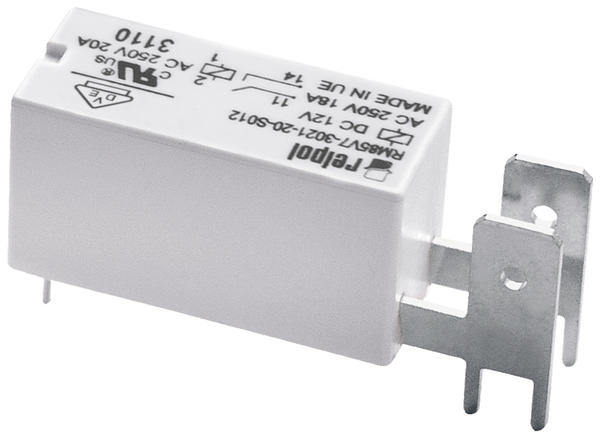

Contacts: 1NO; rated load AC1 – 20 A/250 V AC; coils DC – sensitive; coil terminals PCB, contacts terminals for PCB and flat insert connectors
|
Contact data |
||
|
Number and type of contacts |
1 NO |
|
|
Contact material |
AgSnO2 |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
20 A / 250 V AC |
|
DC1 |
20 A / 24 V DC |
|
|
Rated current |
20 A |
|
|
Max. breaking capacity |
AC1 |
5 000 VA |
|
Coil data |
||
|
Rated voltage |
DC |
5 ... 48 V |
|
Rated power consumption |
DC |
0,25 W |
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts - contact clearance |
5 000 V AC |
|
|
1 000 V AC |
||
|
General data |
||
|
Electrical life resistive |
AC1 |
>2 x 104 20 A, 250 V AC, 85 °C |
|
>1,5 x 105 10 A, 250 V AC, 105 °C |
||
|
Mechanical life (cycles) |
>3 x 107 |
|
|
Ambient temperature operating |
-40...+105 oC |
|
