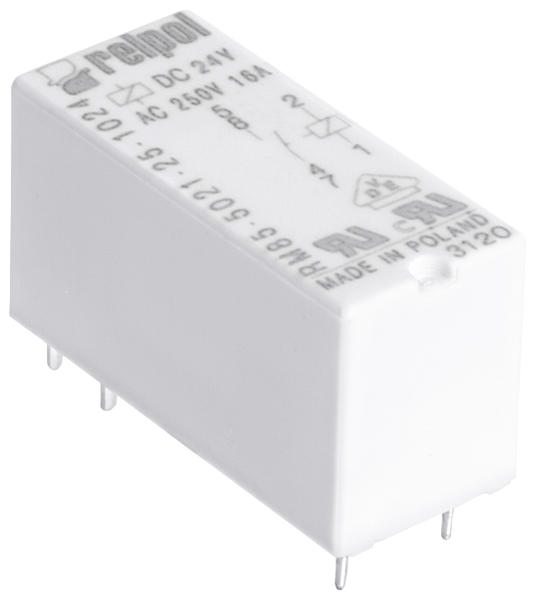

Resistance to inrush current 80 A (20 ms). Contacts: 1NO; rated load AC1 – 16 A/250 V AC; coils DC; for PCB and sockets
|
Contact data |
||
|
Number and type of contacts |
1 NO |
|
|
Contact material |
AgSnO2 |
|
|
Rated / max. switching voltage |
AC |
250 V / 440 V |
|
Rated load (capacity) |
AC1 |
16 A / 250 V AC |
|
DC1 |
16 A / 24 V DC |
|
|
Rated current |
16 A |
|
|
Max. breaking capacity |
AC1 |
4 000 VA |
|
Coil data |
||
|
Rated voltage |
DC |
3 ... 110 V |
|
Rated power consumption |
DC |
0,4 ... 0,48 W |
|
Insulation |
||
|
Dielectric strength |
||
|
between coil and contacts |
5 000 V AC |
|
|
contact clearance |
1 000 V AC |
|
|
General data |
||
|
Electrical life resistive |
AC1 |
>105 16 A, 250 V AC |
|
Mechanical life (cycles) |
>3 x 107 |
|
|
Ambient temperature operating |
-40...+85 oC |
|
|
Sockets |
GZT80, GZM80, GZS80, GZMB80, EC50, PW80, GD50 |
|
|
Accessories for sockets |
Signaling / protecting modules type M |
|
Products
 |
RM85-5021-25-1003
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 3VDC, Rated load 16A, pitch 5mm, Inrush (80A)...
 |
RM85-5021-25-1005
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 5VDC, Rated load 16A, pitch 5mm, Inrush (80A)...
 |
RM85-5021-25-1006
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 6VDC, Rated load 16A, pitch 5mm, Inrush (80A)...
 |
RM85-5021-25-1009
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 9VDC, Rated load 16A, pitch 5mm, Inrush (80A)...
 |
RM85-5021-25-1012
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 9VDC, Rated load 16A, pitch 5mm, Inrush (80A)...
 |
RM85-5021-25-1024
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 24VDC, Rated load 16A, pitch 5mm, Inrush (80A...
 |
RM85-5021-25-1048
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 48VDC, Rated load 16A, pitch 5mm, Inrush (80A...
 |
RM85-5021-25-1060
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 60VDC, Rated load 16A, pitch 5mm, Inrush (80A...
 |
RM85-5021-25-1110
Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 110VDC, Rated load 16A, pitch 5mm, Inrush (80...
Sockets
 |
PW80
Spring Clip for GD50, GD35,
 |
EC50
Spring Clip for GD50, GD35,
 |
GD50
Plug-in Socket for RM84, RM85, RM87L, RM87P, BLACK
 |
GZM80
Plug-in Socket for RM84, RM85, RM87L, RM87P, GREY
 |
GZS80
Plug-in Socket for RM84, RM85, RM87L, RM87P
 |
GZT80
Plug-in Socket for RM84, RM85, RM87L, RM87P, BLACK
Clips
 |
GZT80-0040
PCB Plug-in Socket for RM84, RM85, RM87L, RM87P, RM83 , GREY
 |
MH16-2
Plug-in Socket Retractor Clip for GZM80, GZT80, GZM92, GZT92, GREY, BLACK,
Accessories
 |
GZT80-0035
PCB Plug-in Socket for RM84, RM85, RM87L, RM87P, RM83, BLACK
ZGGZ80-1
Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS92
ZGGZ80-2
Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS93
